Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

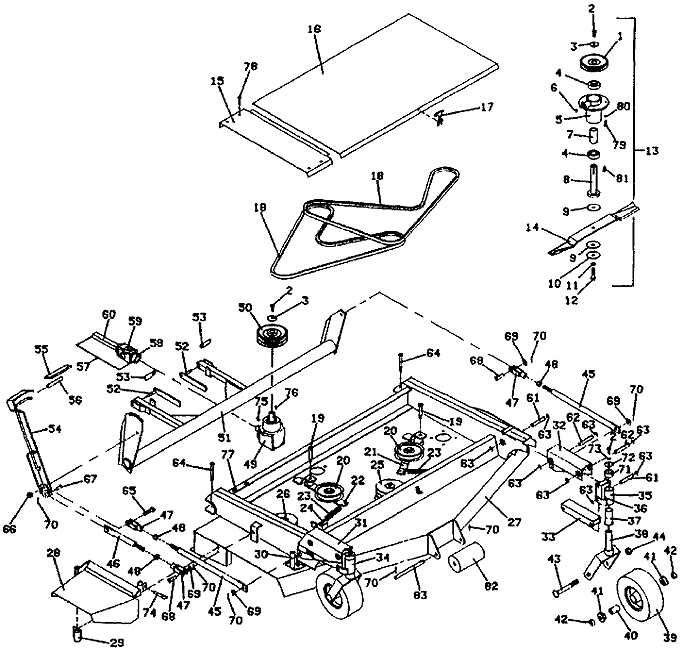

9061 Deck • Mower Assembly

1990

Mower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Sheave

415865

2

Hex Bolt

243331

3

Cupped Washer

257041

4

Ball Bearing without Fluid Seal

120081

5

Grease Spindle Housing

320526

6

Zerk Grease Fitting

280734

7

Bearing Tube Spacer

903640

8

Blade STD Spindle Shaft

603775

9

Fiber Washer

421200

10

Washer

257061

11

Lock Washer

257432

12

Grade 5 Hex Bolt

243581

13

Blade Spindle Assembly

623785

14

21" High Lift Notch Blade

320245

-

21" Medium Lift Blade

320242

-

21" Contour Blade

320244

-

21" Extreme High Lift Blade

320246

15

9661 right Belt Shield

722322

16

9061 Shield Assembly

603782

17

Rubber Draw Latch

281301

18

Belt

382049

19

Shoulder Bolt

259746

20

Idler

393225

21

52 & 61 Offset Idler Arm with Bearing

603074

22

52 & 61 Straight Idler Arm with Bearing

603078

-

Nylon Bearing

422585

23

Extension Spring with Swivel

283820

24

Idler Adjustment J Bolt

730391

25

Sheave

831525

26

Sheave

415866

27

9061 Deck Weldment

643275

28

90 Series Discharge Shield

643747

29

Vac Housing Pivot Mount

643632

30

Clevis Shaft

643235

31

Upper Right Lift Channel

643500

32

Upper Left Lift Channel

643501

33

Deck Stabilizer with Bumper

822312

34

Right Fork Mount with Bearing

603351

35

Left Fork Mount with Bearing

603352

36

Zerk Grease Fitting

280777

37

Flanged Sintered Bushing

833260

38

90 Series Deck Fork

604350

39

9 x 3.5 x 6 Semi-Pneumatic Wheel Assembly

603971

40

Deck Wheel Bearing Spacer

902473

41

Ball Bearing

120050

42

Axle Spacer

902415

43

Carriage Bolt

247715

44

Lock Nut

253970

45

61 Deck Linkage Arm

603568

46

Lift Lever Linkage

603562

47

Clevis Yoke

265554

48

Nut

254475

49

Counter Clockwise Right Angle Gearbox

390024

50

Sheave

416116

51

9061 Mower Lift Arm

643502

52

Attaching Pin

643625

53

Safety Pin

261848

54

Deck Lift Lever

643529

55

Handle Grip

422155

56

Handle Grip

422158

57

UN Half Shaft

398525

58

Yoke

401010

59

Cross & Bearing

121010

60

Yoke & Shaft

402605

61

Hex Bolt

243609

62

Hex Bolt

243614

63

External Retainer

263500

64

Hex Bolt

243375

65

Hex Bolt

243580

66

Lock Nut

253930

67

Clevis Pin

261346

68

Clevis Pin

261426

69

Washer

257062

70

Cotter Pin

260650

71

Spacer

902541

72

Washer

774014

73

Lock Washer

257412

74

Hitch Pin

260400

75

Woodruff Key

281833

76

Woodruff Key

281828

77

Speed Nut

254431

78

Hex Whiz Bolt

253175

79

Hex Bolt

243195

80

Lock Washer

257402

81

Square Key

281586

82

Roller Assembly

426136

83

Roller Pin

780606

84

Mower Safety Decal Set

603280
