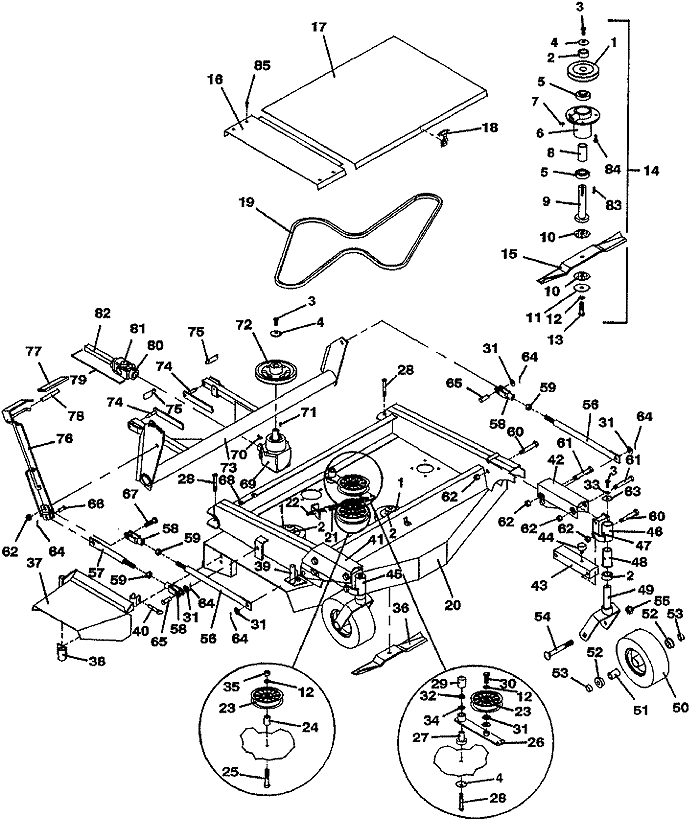

1

Sheave

415826

2

Spacer

282630

3

Hex Bolt

243331

4

Cupped Washer

257041

5

Ball Bearing without Fluid Seal

120081

6

Grease Spindle Housing

320526

7

Zerk Grease Fitting

280734

8

Tube Bearing Spacer

903640

9

Blade Std Spindle Shaft

603775

10

Fiber Washer

421200

11

Washer

257061

12

Lock Washer

257432

13

Hex Bolt

243581

14

Blade Spindle Assembly (includes items 3-13)

623785

15

18" Hi-Lift Notch Blade

320239

-

18" Medium-Lift Blade

320236

16

right 9048/52 Belt Shield

722284

17

9048 Shield Assembly

603780

18

Rubber Draw Latch

281301

19

Belt

383008

20

9148 Deck Weldment

643264

21

Extension Spring with Swivel

283820

22

Idler Adjustment "J" Bolt

730391

23

Idler

393225

24

Idler Spacer

902325

25

Hex Bolt

243600

26

Idler Arm with Bearing & Pedestal

824502

27

Pedestal Bearing

121650

28

Hex Bolt

243365

29

Vinyl Cap

422098

30

Hex Bolt

243565

31

Washer

257062

32

Whiz Nut

253043

33

Lock Nut

257412

34

Washer

257040

35

Nut

254470

36

15" Hi-Lift Notch Blade

320234

-

15" Medium-Lift Blade

320231

37

90 Series Discharge Shield

643747

38

Vac Housing Pivot Mount

643632

39

Clevis Shaft

643235

40

Hitch Pin

260400

41

Upper Right Lift Channel

643500

42

Upper Left Lift Channel

643501

43

Deck Stabilizer with Bumper

822312

44

Rubber Bumper

424052

45

Right Fork Mount with Bearing

603351

46

Left Fork Mount with Bearing

603352

47

Zerk Grease Fitting

280776

48

Flanged Sintered Bushing

833260

49

90 Series Deck Fork

604350

50

9 x 3.5 x 4 Semi-Pneumatic Wheel Assembly

603971

51

Deck Wheel Bearing Spacer

902473

52

Ball Bearing

120050

53

Axle Spacer

902415

54

Carriage Bolt

247715

55

Lock Nut

253970

56

52" Deck Linkage Arm

603564

57

Lift Lever Linkage

603562

58

Clevis Yoke

265554

59

Nut

254475

60

Hex Bolt

243609

61

Hex Bolt

243614

62

Lock Nut

253930

63

Washer

774014

64

Cotter Pin

260650

65

Clevis Pin

261426

66

Clevis Pin

261346

67

Hex Bolt

243580

68

Speed Nut

254431

69

Counter-Clockwise Right Angle Gearbox

390024

70

Woodruff Key

281833

71

Woodruff Key

281828

72

Sheave

415886

73

9148 Offset Lift Arm

643494

74

Attaching Pin

643625

75

Safety Pin

261848

76

Deck Lift Lever

643529

77

Handle Grip

422155

78

Handle Grip

422158

79

UN Half Shaft

398525

80

Yoke

401010

81

Cross & Bearing

121010

82

Yoke & Shaft

402605

83

Square Key

281580

84

Hex Flange Whiz Bolt

253192

85

Hex Whiz Bolt

253173

86

Mower Safety Decal Set

603280
