Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

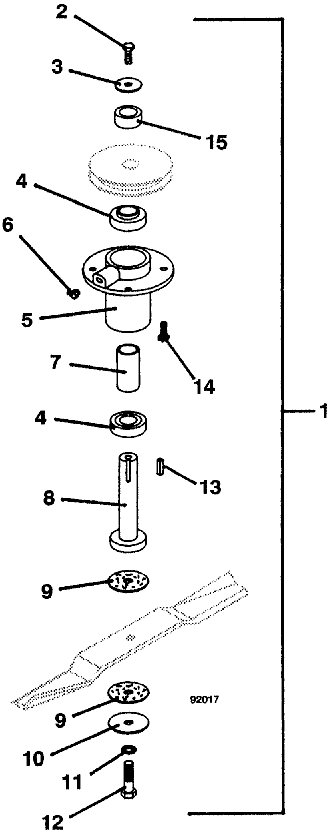

9148 Deck • Blade Spindle Assembly

1992

Blade Spindle Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Blade Spindle Assembly (includes items 2-12)

623785

2

Hex Bolt

243331

3

Cupped Washer

257041

4

Ball Bearing without Fluid Seal

120081

5

Grease Spindle Housing

320526

6

Zerk Grease Fitting

280734

7

Bearing Tube Spacer

903640

8

Blade Std Spindle Shaft

603775

9

Fiber Washer

421200

10

Washer

257061

11

Lock Washer

257432

12

Hex Bolt

243581

13

Square Key

281580

14

Hex Flange Whiz Bolt

253192

15

Spacer

282630

return to 9148 index return to top of page
