Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

9148 Deck • Wheel Lift Assembly

1994

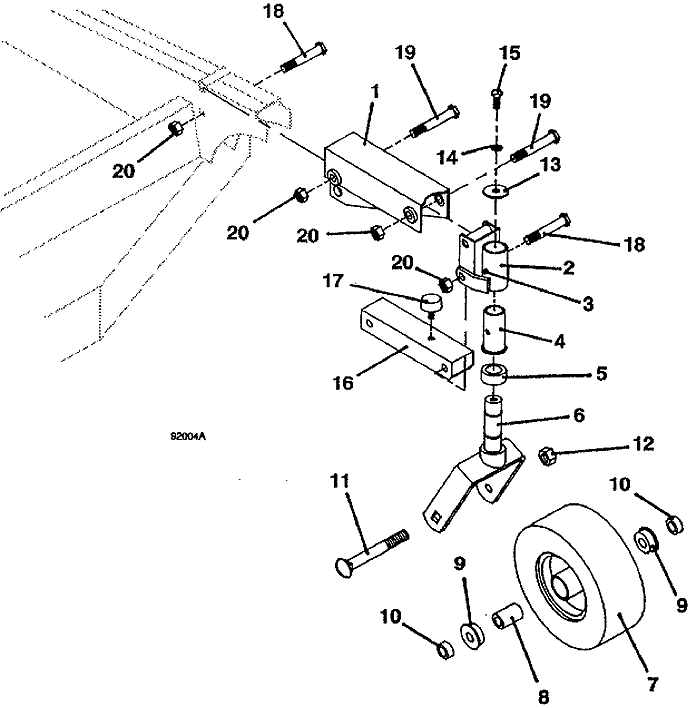

Wheel Lift Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Upper Right Lift Channel

643500

-

Upper Left Lift Channel

643501

2

Right Fork Mount with Bearing

603351

-

Left Fork Mount with Bearing

603352

3

Zerk Grease Fitting

280776

4

Flanged Sintered Bushing

833260

5

Spacer

902541

6

90 Series Deck Fork

604350

-

O-Ring

425514

7

9 x 3.5 x 4 Semi-Pneumatic Wheel Assembly

603971

8

Deck Wheel Bearing Spacer

902473

9

Ball Bearing

120050

10

Axle Spacer

902415

11

Carriage Bolt

247715

12

Lock Nut

253970

13

Washer

774014

14

Lock Washer

257412

15

Hex Bolt

243331

16

Deck Stabilizer with Bumper

822312

17

Rubber Bumper

424052

18

Hex Bolt

243609

19

Hex Bolt

243614

20

Lock Nut

253930

return to 9148 index return to top of page
