Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

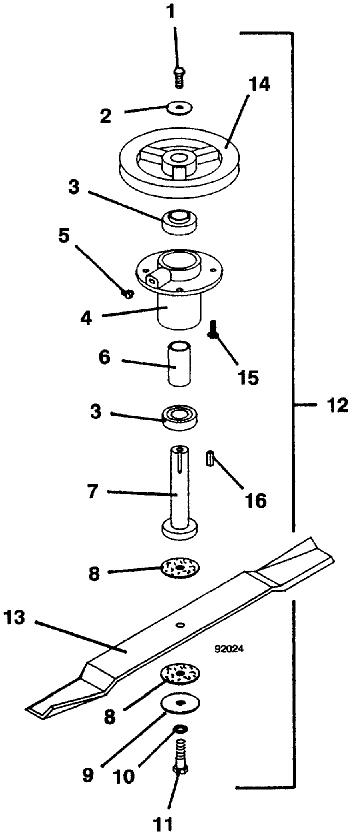

9272 • Blade Spindle Assembly

1992

Blade Spindle Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hex Bolt

243331

2

Cupped Washer

257041

3

Ball Bearing without Fluid Seal

120081

4

Spindle Grease Housing

320526

5

Zerk Grease Fitting

280734

6

Tube Bearing Spacer

903640

7

STD Blade Spindle Shaft

603775

8

Fiber Washer

421200

9

Washer

257061

10

Lock Washer

257432

11

Hex Bolt

243581

12

Blade Spindle Assembly (includes items 1-11)

623785

13

25 Inch Notched High Lift Blade

320253

-

25 Inch Medium Lift Blade

320250

14

Sheave

415900

-

Sheave

416140

15

Hex Flange Whiz Bolt

253192

16

Square Key

281586
