Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

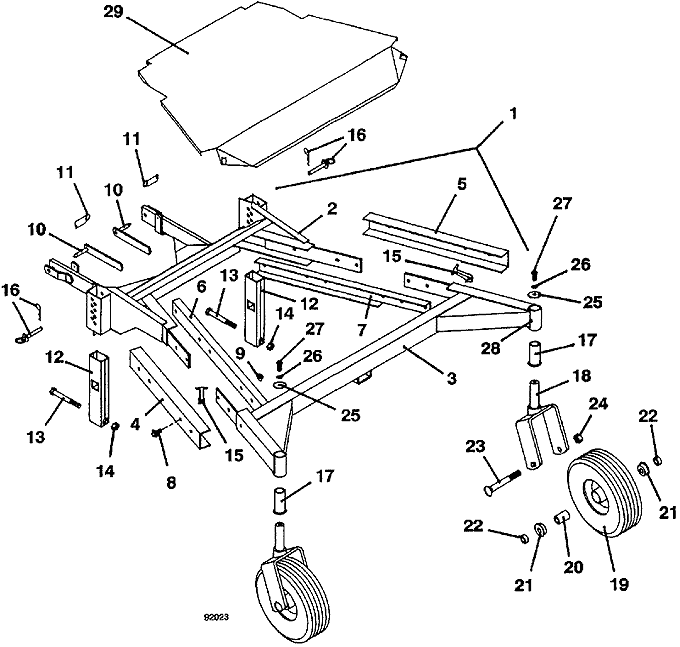

9272 • Deck Carrier Assembly

1992

Deck Carrier Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

6372 Carrier Frame Assembly

603218

2

72" Carrier Rear Section

643210

3

90/9372 Front Crossmember Assembly

606265

4

Right Center Wheel Support Channel

729432

5

Left Center Wheel Support Channel

729433

6

Right 72" Reinforcement Channel

729434

7

Left 72" Reinforcement Channel

729435

8

Flange Whiz Bolt

253203

9

Whiz Nut

253043

10

Attaching Pin

643625

11

Safety Pin

261848

12

Deck Lift Tube

643818

13

Hex Bolt

243625

14

Lock Nut

253930

15

Rubber Draw Latch

281301

16

Pin & Clip Assembly

603625

-

Hair Pin

260525

17

Flanged Sintered Bushing

833260

18

72" Fork Assembly

604355

19

4.10 x 4 Flatproof Wheel

603929

20

Deck Wheel Bearing Spacer

902473

21

Ball Bearing

120050

22

Axle Spacer

902415

23

Carriage Bolt

247715

24

Lock Nut

253970

25

Washer

774022

26

Lock Washer

257412

27

Hex Bolt

243331

28

Zerk Grease Fitting

280776

29

72" Center Shield Assembly

603779
