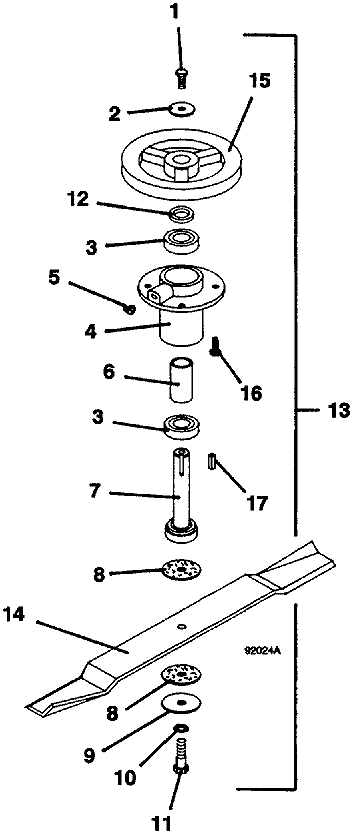

9272 • Blade Spindle Assembly
1993
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Hex Bolt |
243331 |
2 |
Cupped Washer |
257041 |
3 |
Single Seal Ball Bearing |
110082 |
4 |
Spindle Grease Housing |
320526 |
5 |
Zerk Grease Fitting |
280734 |
6 |
Tube Bearing Spacer |
903640 |
7 |
25mm Spindle Shaft Assembly |
604770 |
8 |
Fiber Washer |
421200 |
9 |
Washer |
257061 |
10 |
Lock Washer |
257432 |
11 |
Hex Bolt |
243581 |
12 |
Spacer |
282607 |
13 |
Blade Spindle Assembly (includes items 1 - 12) |
623784 |
14 |
25 Inch Notched High Lift Blade |
320253 |
- |
25 Inch Medium Lift Blade |
320250 |
- |
25 Inch Contour Blade |
320252 |
- |
25 Inch Extreme High Lift Blade |
320254 |
15 |
Sheave |
414745 |
16 |
Hex Flange Whiz Bolt |
253192 |
16 |
Square Key |
281586 |
