9272 • Mower Assembly

1994

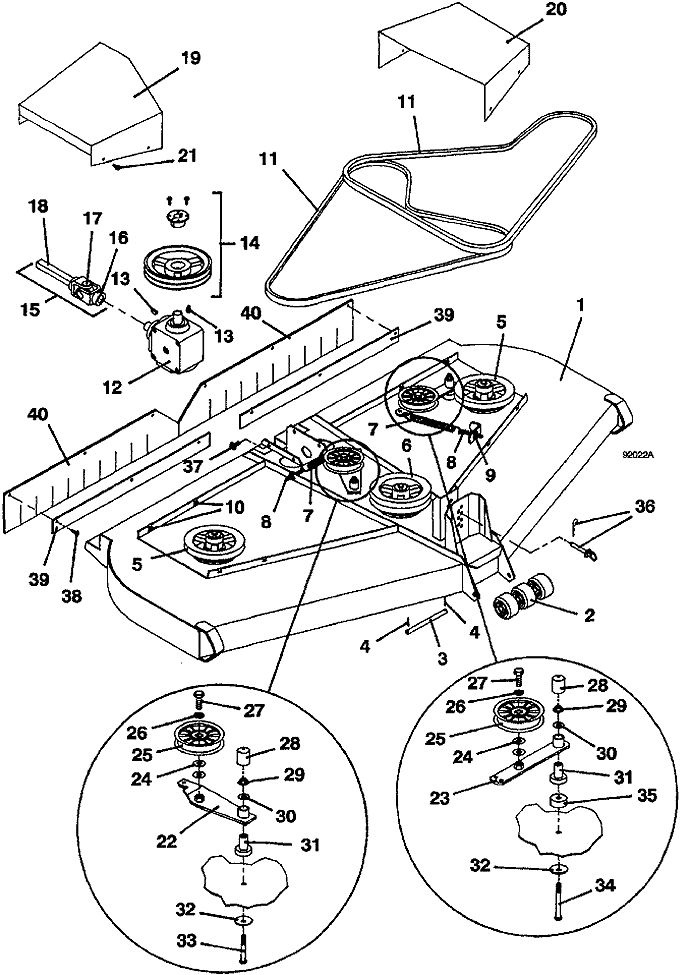

Mower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

9272 Mower Deck

643276

2

Roller Assembly

426136

3

Roller Pin

780606

4

Cotter Pin

260650

5

Sheave

414745

6

Sheave

414945

7

Extension Spring with Swivel

283820

8

J Bolt Idler Adjustment

730391

9

Nut

254450

10

Speed Nut

254431

11

Belt

382062

12

Right Angle Gearbox

390028

13

Woodruff Key

281839

14

Sheave with Hub

604759

15

UN Half Shaft

398520

16

Yoke

401013

17

Cross & Bearing

121010

18

Yoke & Shaft

402605

19

72" Right Belt Shield

643753

20

72" Left Belt Shield

643754

21

Hex Whiz Bolt

253173

22

72" Lower Idler Arm

824513

23

52 & 61 Idler Arm with Bearing & Pedestal

824502

24

Washer

257062

25

Idler

393225

26

Lock Washer

257432

27

Hex Bolt

243565

28

Vinyl Cap

422098

29

Whiz Nut

253043

30

Washer

257040

31

Pedestal Bearing

121650

32

Cupped Washer

257041

33

Hex Bolt

243365

34

Hex Bolt

243385

35

Idler Arm Spacer

902317

36

Pin & Clip Assembly

603625

-

Hair Pin

260525

37

Flange Whiz Bolt

253203

38

Whiz Truss Bolt

253177

39

Rubber Deflector Strap

775229

40

9272 Deck Flap

424184

return to 9272 index return to top of page
