Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

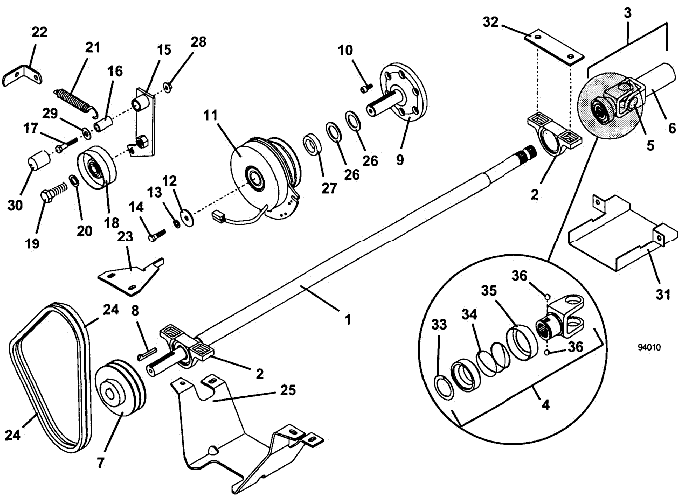

928D • PTO Shaft & Clutch Assembly

1995

PTO Shaft & Clutch Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Power Shaft

643730

2

Pillowblock SC Bearing

122044

3

UN Half Sleeve

398914

4

Quick Disconnect Splined Yoke

401019

5

Cross & Bearing

121010

6

Yoke with Sleeve

401015

7

Sheave

415620

8

Square Gib Key

281588

9

Clutch Stub Shaft

824641

10

Hex Bolt

271120

11

928D Clutch Assembly

604183

12

Washer

883803

13

Lock Washer

257412

14

Hex Bolt

243337

15

928 PTO Idler Arm

824497

-

Oilite Bearing

121758

16

Pivot Shaft Bearing

881105

17

Hex Bolt

243355

18

Idler

393175

19

Hex Bolt

243805

20

Lock Washer

257452

21

Extension Spring with Swivel

283819

22

Left Control Arm Spring Bracket

732537

23

928 Anti-Rotation Bracket

725102

24

Belt

381914

25

900 Sheave Guard

725303

26

Washer

257116

27

Spacer

902587

28

Whiz Nut

253043

29

Washer

257040

30

Vinyl Cap

422098

31

PTO Shaft Shield

729287

32

928 Front Bearing Spacer

901319

33

External Retainer

263660

34

Compression Spring

283525

35

NOT AVAILABLE

422980

36

Steel Ball

300014
