Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

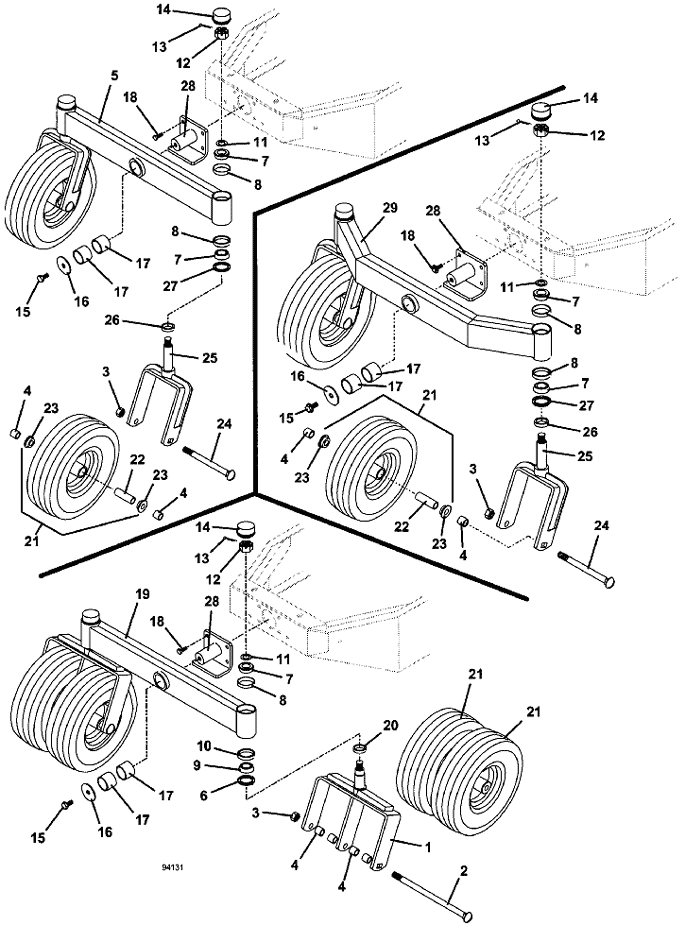

928D • Tail Wheel Options

1995

Tail Wheel Options

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Dual Fork & Lock Nut Assembly

604366

2

Fork 13 Bolt Assembly

604153

3

Lock Nut

253970

4

Axle Spacer

902422

5

Dual Wheel Beam

824510

6

Seal

125855

7

Taper Bearing

122522

8

Bearing Cup

123522

9

Taper Bearing

122523

10

Bearing Cup

123521

11

14 Ga Bushing Washer

257091

12

Lock Nut

254502

13

Cotter Pin

260668

14

Dust Cap

481432

15

Whiz Bolt

253243

16

Washer

257061

17

Reamed Oilite Bearing

833275

18

Whiz Flange Bolt

253203

19

Wide Dual Beam

824508

20

Spacer

830420

21

13 x 5 x 6 Wheel & Tire with Bearing & Spacer

483861

-

13 x 5 x 6 Ribbed Tubeless Tire

482350

-

6 x 3.25 Tan Wheel with Bearing & Spacer

483301

22

Rear Wheel Bearing Spacer

902475

23

Ball Bearing

120050

24

Carriage Bolt

247725

25

Rear Fork & Lock Nut Assembly

604364

26

.375 x 1.031 x 1.50 Spacer

282615

27

Seal

125855

28

Rear Axle Pivot Assembly

604597

29

Offset Beam

824516
