Genuine OEM Grasshopper® Mower Parts Diagrams

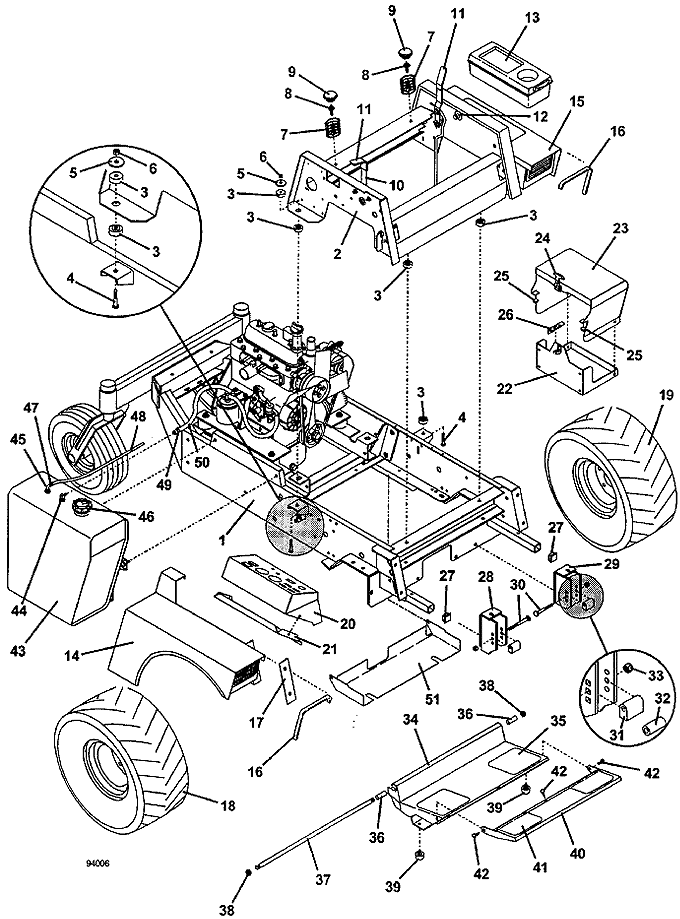

928D • Tractor Assembly
1995
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
928 Lower Frame |
643826 |
2 |
900 Tractor Upper Frame |
643825 |
3 |
Step Bushing |
257037 |
4 |
Hex Bolt |
243220 |
5 |
Washer |
774020 |
6 |
Nut with Nylon Insert |
253450 |
7 |
Compression Spring |
283516 |
8 |
Flange Whiz Bolt |
253203 |
9 |
Seat Spring Cap |
422127 |
10 |
Throttle Assembly |
603856 |
- |
Control Cable Assembly |
323640 |
- |
Throttle Lever Stop |
722009 |
11 |
Handle Grip |
422150 |
12 |
Spacer |
902280 |
13 |
Tool Box |
422040 |
14 |
700/900 right Fender with Safety Decal |
693210 |
- |
928D right Trim Decal |
163370 |
15 |
700/900 left Fender with Safety Decal |
693211 |
- |
928D left Trim Decal |
163371 |
16 |
700/900 Fender Edge Trim |
822635 |
17 |
right Fender Cover Panel |
722062 |
18 |
21 x 11 x 8 right Wheel & Bar Tread Tire |
483930 |
- |
21 x 11 x 8 Bar Tread Tire |
482478 |
- |
5-Bolt 8 x 9.125 Wheel |
483415 |
19 |
21 x 11 x 8 left Wheel & Bar Tread Tire |
483931 |
- |
21 x 11 x 8 Bar Tread Tire |
482478 |
- |
5-Bolt 8 x 9.125 Wheel |
483415 |
20 |
Console with Decal for Liquid Cooled model |
693102 |
21 |
Side Console Filler Panel |
721136 |
22 |
Contour Battery Box Assembly |
603105 |
23 |
Battery Box Lid Assembly |
603570 |
24 |
Rubber Draw Latch |
281301 |
25 |
Rubber Bumper |
424029 |
26 |
Bolt On Battery Clamp |
723017 |
27 |
1" (Internal Dimension) Square Plastic Plug |
422065 |
28 |
700/900 right Quick Disconnect Deck Mount |
643092 |
29 |
700/900 left Quick Disconnect Deck Mount |
643093 |
30 |
Special Carriage Bolt |
247280 |
31 |
Deck Mount Bushing |
282575 |
32 |
Floating Deck Mount Bushing |
282576 |
33 |
Nut with Nylon Insert |
253460 |
34 |
700/900 Adjustable Foot Platform Assembly |
604346 |
35 |
Foot Rest Tread |
420905 |
36 |
Nylon Bearing |
422615 |
37 |
Foot Rest Pivot Rod |
780673 |
38 |
Nylon Insert Nut |
253470 |
39 |
Rubber Bumper |
424052 |
40 |
700 Foot Platform Extension |
603301 |
41 |
Foot Rest Tread Extension |
420904 |
42 |
Carriage Bolt |
247130 |
43 |
8 Gal Diesel Fuel Tank with Decal |
693234 |
44 |
Fuel Tube |
101837 |
45 |
Fuel Tube |
101835 |
46 |
Cap with Fuel Level |
141130 |
47 |
Spring Clamp Hose |
280260 |
48 |
Fuel Line Return Hose |
821740 |
49 |
Hose Clamp |
280270 |
50 |
Fuel Line Hose |
821716 |
51 |
Hydro Fan Screen |
721243 |
52 |
928D Decal Set |
603276 |
