Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

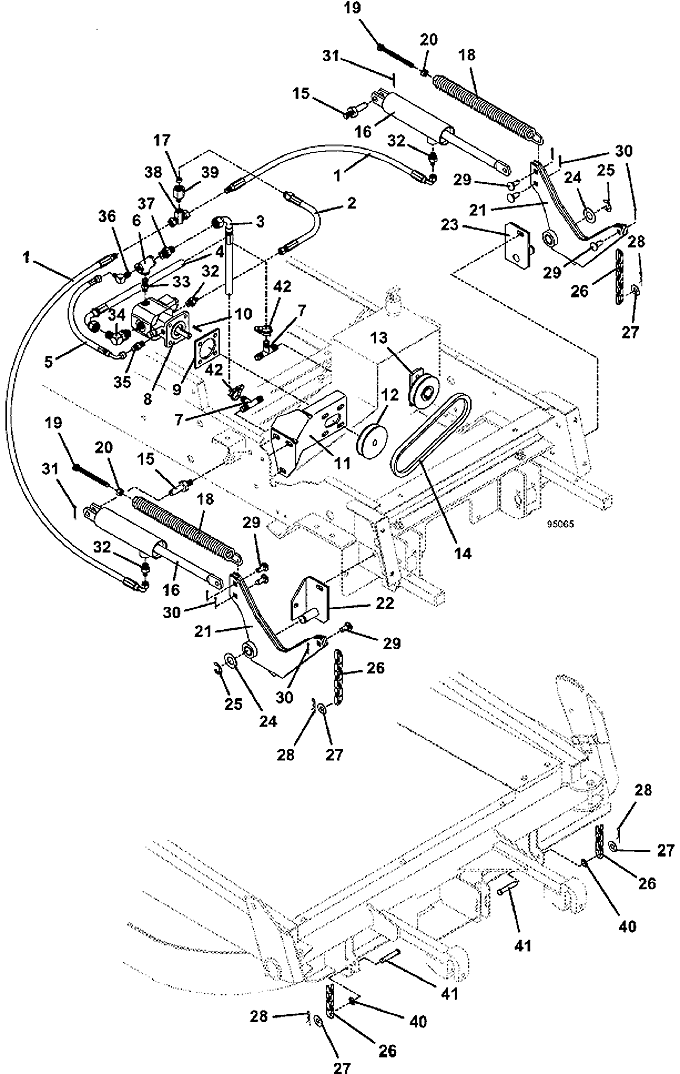

928D • Hydraulic Lift Assembly

1996

Hydraulic Lift Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hose Assembly

424306

2

Hose Assembly

424300

3

Hose Assembly

424331

4

Hose Assembly

424332

5

Hose Assembly

424302

6

Reducer Tee

366115

7

Nylon Fitting

363850

8

Hydraulic Pump with Clockwise Solenoid Valve

290072

-

Hydraulic Solenoid Valve

144950

9

Hydraulic Pump Spacer

775049

10

Square Key

281540

11

Hydraulic Pump Mount

643278

12

Sheave - Hydraulic Pump

831436

13

Coupling Hub with Sheave

824551

14

Belt

381883

15

Cylinder Mount Pin with Groove

887119

16

Hydraulic Cylinder

290021

-

Hydraulic Lift Cylinder Seal Kit

290095

17

Flow Restrictor

780507

18

Traction Kit Spring Assembly

605760

19

Hex Bolt

243361

20

Nut

254450

21

Hydraulic Lift Rocker

603716

22

Right 900 Lift Pivot

644517

23

Left 900 Lift Pivot

644518

24

18 Gauge Bushing Washer

257092

25

External Retainer

263529

26

Lift Chain - 6 Links

820322

27

Washer

257040

28

Hair Pin

260523

29

Clevis Pin

261339

30

Cotter Pin

260648

31

Cotter Pin

260652

32

O Ring Adapter

360052

33

O Ring Adapter

360040

34

O Ring Adapter

360060

35

O Ring Adapter

360050

36

Flare Adapter

360025

37

Flare Adapter

360015

38

Swivel Tee Adapter

360005

39

O Ring Adapter

360045

40

Push-On Retainer

262950

41

Clevis Pin

261362

42

Plastic Snap Hose Clamp

280278
