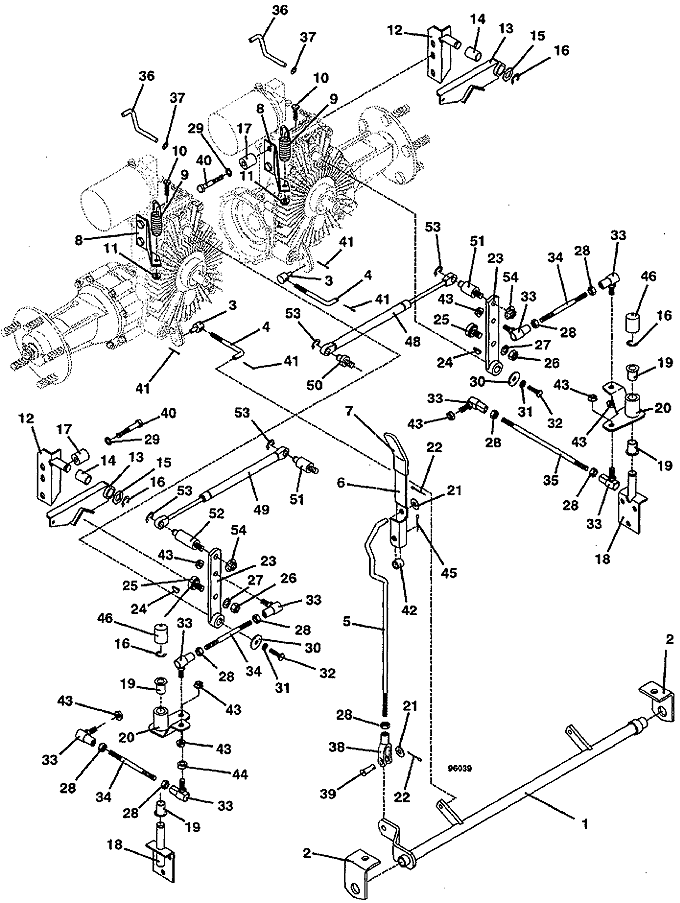

Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
Item #
Description
Part Number
1
771 Brake Pivot
643955
2
Brake Pivot Rod Mount Bracket
732610
3
Brake Linkage Pin
880924
4
Brake Linkage Rod
730256
5
700 Brake Linkage Rod
730361
6
700 Brake Lever
729046
7
Handle Grip
422150
8
Neutral Return Spring Bracket
729072
9
Extension Spring
283823
10
Hex Bolt
243030
11
Whiz Nut
253025
12
Neutral Return Pivot Mount
643603
13
Neutral Return Arm with Bearing
603084
14
Nylon Bearing
422560
15
Washer
257063
16
External Retainer
263500
17
Drive Mount Plate Spacer
902307
18
Control Linkage Pivot
643627
19
Sleeve Bearing with Flange
422559
20
Linkage Pivot with Bearing
603567
21
257030
22
Cotter Pin
260624
23
Extended Control Arm
643059
24
Woodruff Key
281823
25
Eccentric Roller Assembly
603726
26
Nut
254450
27
External Star Washer
257410
28
254441
29
Lock Washer
257402
30
Flat Washer
774012
31
257392
32
260648
33
righthand thread Ball Joint
265615
34
Ball Joint Rod
780160
35
780165
36
Dump Valve Lever
730088
37
Push-On Retainer
262934
38
Clevis Yoke
265537
39
Clevis Pin
261284
40
243225
41
42
Brake Lever Spacer
423705
43
253038
44
.25 THK Spacer
902297
45
Left / Right Threaded Linkage Rod
780161
46
1" I.D. Vinyl Cap
422096
47
254444
48
right Damper
285025
49
left Damper
285030
50
.25 Shock Mount Pin
881103
51
1" Shock Mount Pin
881110
52
Shock Mount Pin
881121
53
263490
54
253043
