Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

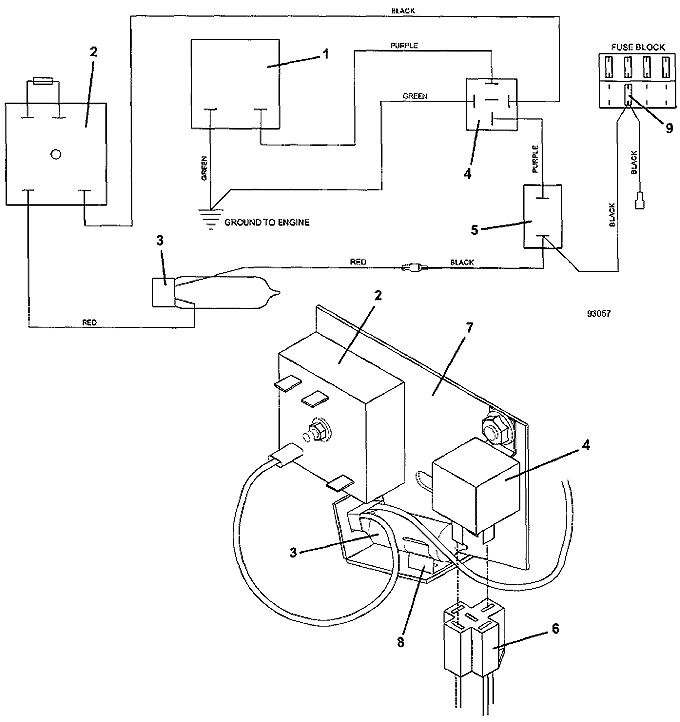

928D • Hydraulic Lift Wiring

1997

Hydraulic Lift Wiring

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hydraulic Solenoid Valve

144950

2

Deck LIft Timer Assembly

604815

3

Mercury SwitchY

183725

4

12V DC Relay with Mount

184271

-

Type 1 6mm Push-On

184570

-

.250 Fast-On Terminal

184581

-

5-Way Female Connector

184926

5

Momentary Toggle

183954

-

Sealed Dome Switch

183940

6

5-Way Female Connector

184926

7

Tilt Safety Switch Console Mount

722121

8

Switch Mounting Clip

183726

9

7.5 amp Auto ATC Fuse

181460
