Genuine OEM Grasshopper Lawn Mower Parts

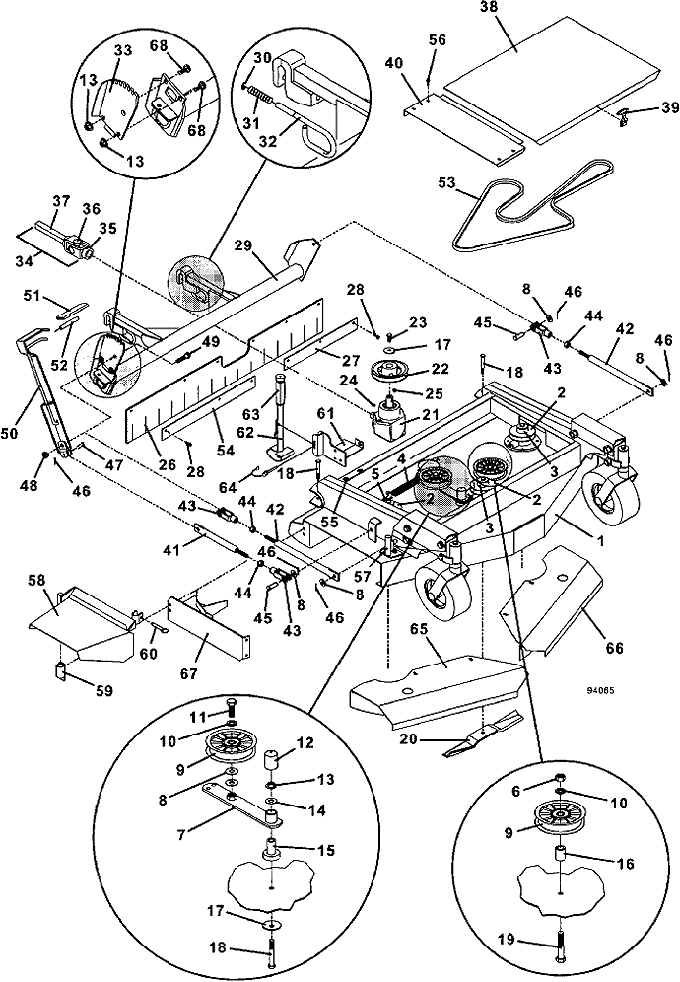

Genuine OEM Grasshopper® Mower Parts Diagrams

9344 Deck • Mower Assembly

1995

Mower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

9344 Deck Weldment

643974

2

Sheave

414675

3

Spacer

282630

4

Extension Spring with Swivel

283820

5

Idler Adjustment J Bolt

730391

6

Nut

254470

7

Idler Arm with Bearing & Pedestal

824502

8

Washer

257062

9

Idler

393225

10

Lock Washer

257432

11

Hex Bolt

243565

12

Vinyl Cap

422098

13

Whiz Nut

253043

14

Washer

257040

15

Bearing Pedestal

121650

16

Idler Spacer

902325

17

Cupped Washer

257041

18

Hex Bolt

243365

19

Hex Bolt

243600

20

15 Inch Medium Lift Blade

320231

-

15 Inch High Lift Blade

320232

21

Counter Clockwise Right Angle Gearbox

390024

22

Sheave

415876

23

Hex Bolt

243331

24

Woodruff Key

281833

25

Woodruff Key

281828

26

9344 Deck Flap

424185

27

Rubber Deflector Strap

774249

28

Whiz Bolt

253175

29

44 Quick Disconnect Lift Arm

603551

30

External Retainer

263490

31

Compression Spring

283285

32

Deck Mount Latch Pin

730433

33

Lever Mount with Decal

604520

34

Half Shaft Assembly

398523

35

Yoke

401010

36

Cross & Bearing

121010

37

Yoke & Shaft

402605

38

Belt Shield

603769

39

Rubber Draw Latch

281301

40

Right Belt Shield

722308

41

Lift Lever Linkage

603562

42

44 Deck Linkage Arm

603563

43

Clevis Yoke

265565

44

Nut

254493

45

Clevis Pin

261426

46

Cotter Pin

260650

47

Clevis Pin

261346

48

Lock Nut

253930

49

Hex Bolt

243580

50

Deck Lift Lever

643529

51

Handle Grip

422155

52

Handle Grip

422158

53

Belt

383010

54

9544 Right Defector Strap

782571

55

Speed Nut

254431

56

Hex Whiz Bolt

253173

57

Clevis Shaft

643235

58

90 Series Discharge Shield

643747

59

9344 Discharge Shield Mount

643016

60

Hitch Pin

260400

61

93 Series Deck Stand Mount

644553

62

Deck Stand

603808

63

Handle Grip

422175

64

Linch Pin

261624

65

9344 Right Front Mulching Shroud

643168

66

9344 left Front Mulching Shroud

643169

67

9344 Discharge Filler

643686

68

Carriage Bolt

247253

69

Mower Safety Decal Set

603280
