Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

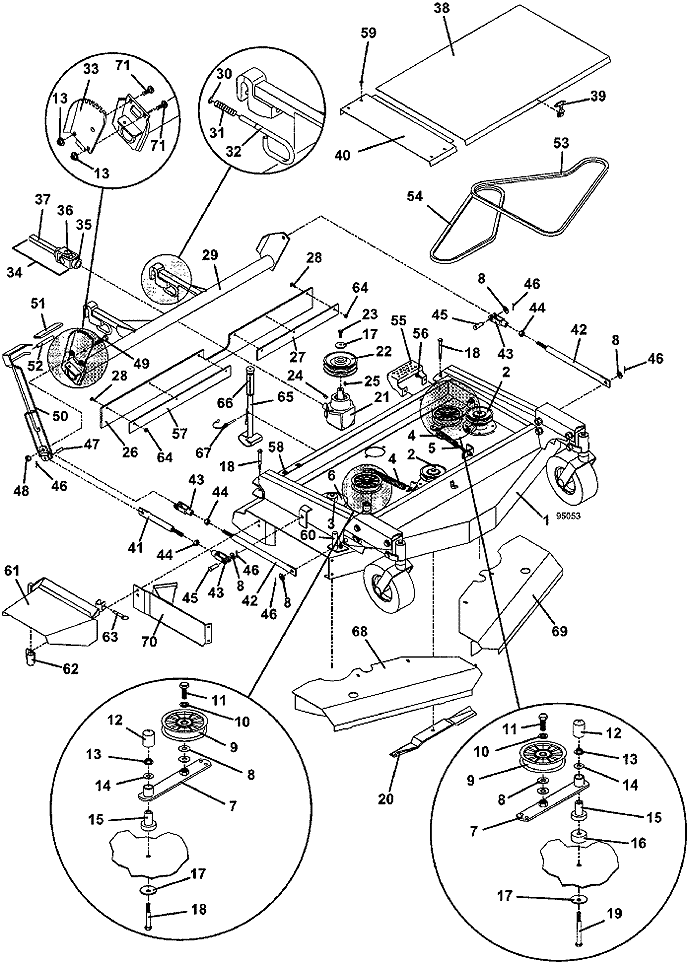

9352 • Mower Assembly

1996

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

52 Deck Weldment Combo

643973

2

Sheave

414686

3

Spacer

282630

4

Extension Spring with Swivel

283820

5

Idler Adjustment J Bolt

730391

6

Sheave

414685

7

Idler Arm with Bearing & Pedestal

824502

8

Washer

257062

9

Idler

393225

10

Lock Washer

257432

11

Hex Bolt

243565

12

Vinyl Cap

422098

13

Whiz Nut

253043

14

Flat Washer

257040

15

Pedestal Bearing

121650

16

Idler Arm Spacer

902317

17

Cupped Washer

257041

18

Hex Bolt

243365

19

Hex Bolt

243385

20

18 Inch Medium Lift Blade

320236

-

18 Inch Contour Blade

320238

-

18 Inch Notched High Lift Blade

320239

-

18 Inch Extreme High Lift Blade

320241

21

CCW Right Angle Gear Box

390024

22

Sheave

416116

23

Hex Bolt

243331

24

Woodruff Key

281833

25

Woodruff Key

281828

26

9352 Deck Flap

424193

27

52 Deck Flap Strap

782568

28

Whiz Truss Bolt

253177

29

Lift Arm Assembly

603559

30

External Retainer

263490

31

Compression Spring

283285

32

Deck Mount Latch Pin

730433

33

Lever Mount with Decal

604520

34

UN Half Shaft

398525

35

Yoke

401010

36

Cross & Bearing

121010

37

Yoke & Shaft

402605

38

9052 Shield Assembly

603781

39

Rubber Draw Latch

281301

40

9048/52 right Belt Shield

722284

41

Lift Lever Linkage

603562

42

52 Deck Linkage Arm

603564

43

Clevis Yoke

265565

44

Nut

254493

45

Clevis Pin

261426

46

Cotter Pin

260650

47

Clevis Pin

261346

48

Lock Nut

253930

49

Hex Bolt

243580

50

Deck Lift Lever

643529

51

Handle Grip

422155

52

Handle Grip

422158

53

Belt

382037

54

Belt

382800

55

52" Deck Step

729283

56

Hex Flange Whiz Bolt

253192

-

Whiz Nut

253035

57

Rear Deflector Strap

782595

58

Speed Nut

254431

59

Hex Whiz Bolt

253173

60

Clevis Shaft

643235

61

90 Series Discharge Shield

643747

62

Vac Housing Pivot Mount

643632

63

Hitch Pin

260400

64

Whiz Nut

253025

65

Deck Stand

603808

66

Handle Grip

422175

67

Linch Pin

261624

68

9352 Right Front Mulch Shroud

643166

69

9352 Left Front Mulch Shroud

643167

70

9352 Discharge Filler

643684

71

Carriage Bolt

247253

72

Mower Safety Decal Set

603280
