Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

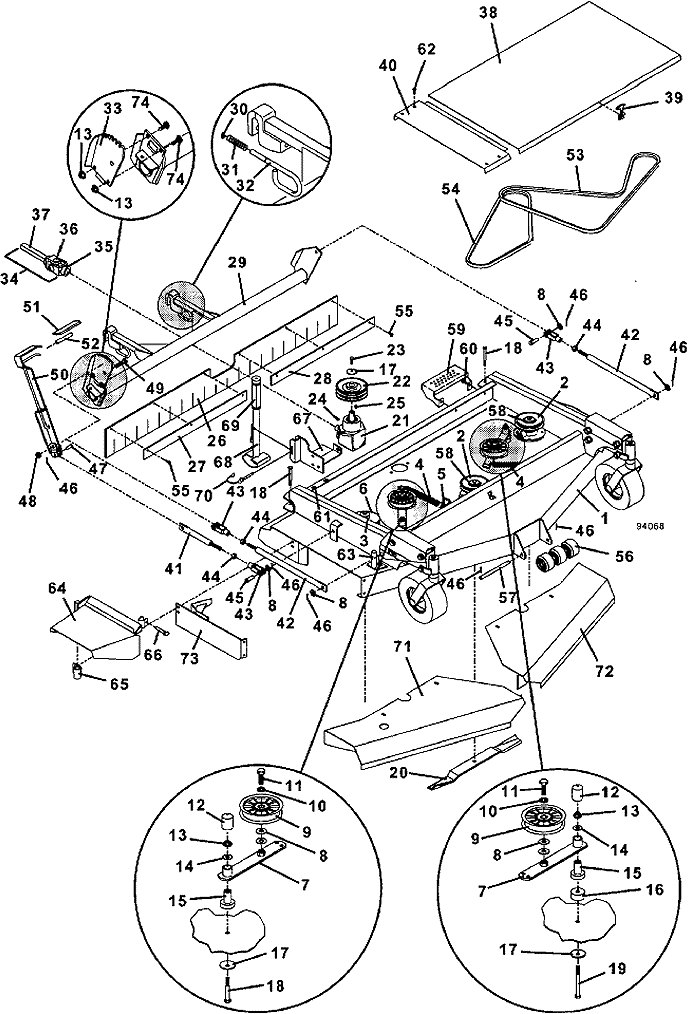

9361 • Mower Assembly

1995

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

9361 Deck Kit with Exterior Shroud

603688

2

Sheave

414695

3

Spacer

282630

4

Extension Spring w/Swivel

283820

5

Idler Adjustment J Bolt

730391

6

Sheave

414696

7

Idler Arm with Bearing & Pedestal

824502

8

Washer

257062

9

Idler

393225

10

Lock Washer

257432

11

Bolt

243565

12

Vinyl Cap

422098

13

Whiz Nut

253043

14

Flat Washer

257040

15

Bearing Pedestal

121650

16

Idler Spacer

902317

17

Cupped Washer

257041

18

Bolt

243365

19

Bolt

243385

20

Blade 21 Inch - Medium Lift (Uses 3)

320242

-

Blade 21 Inch - Notched High Lift (Uses 3)

320245

-

Blade 21 Inch - Contour (Uses 3)

320244

21

Gear Box Right Angle CCW

390024

22

Sheave

416116

23

Bolt

243331

24

Woodruff Key

281833

25

Woodruff Key

281828

26

Deck Flap

424188

27

Strap

782598

28

Strap

775208

29

Lift Arm Assembly

603561

30

External Retainer

263490

31

Spring

283285

32

Deck Mount Latch Pin

730433

33

Lever Mount

604520

34

Half Shaft Assembly

398525

35

Yoke

401010

36

Cross & Bearing

121010

37

Yoke & Shaft

402605

38

Belt Shield Assembly

603782

39

Rubber Draw Latch

281301

40

Belt Shield - Right

722322

41

Lift Lever Linkage Assembly

603562

42

Linkage Arm

603568

43

Clevis Yoke

265565

44

Jam Nut

254493

45

Clevis Pin

261426

46

Cotter Pin

260650

47

Clevis Pin

261346

48

Lock Nut

253930

49

Bolt

243580

50

Deck Lift Lever

643529

51

Handle Grip

422155

52

Handle Grip

422158

53

Belt

382049

54

Belt

382025

55

Bolt

253175

56

Roller Assembly

426136

57

Roller Pin

780606

58

Washer

257107

59

Step

729222

60

Bolt

253192

-

Whiz Nut

253025

61

Nut

254431

62

Bolt

253173

63

Clevis Shaft

643235

64

Discharge Shield

643747

65

Pivot Mount

643632

66

Hitch Pin

260400

67

Deck Stand Mount

644553

68

Deck Stand

603808

69

Handle Grip

422175

70

Linch Pin

261624

71

Front Shroud - Right

643170

72

Front Shroud - Left

643171

73

Discharge Restriction Plate

643687

74

Bolt

247253

75

Mower Safety Decal Set

603280
