Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

9361 • Right Angle Gearbox

1995

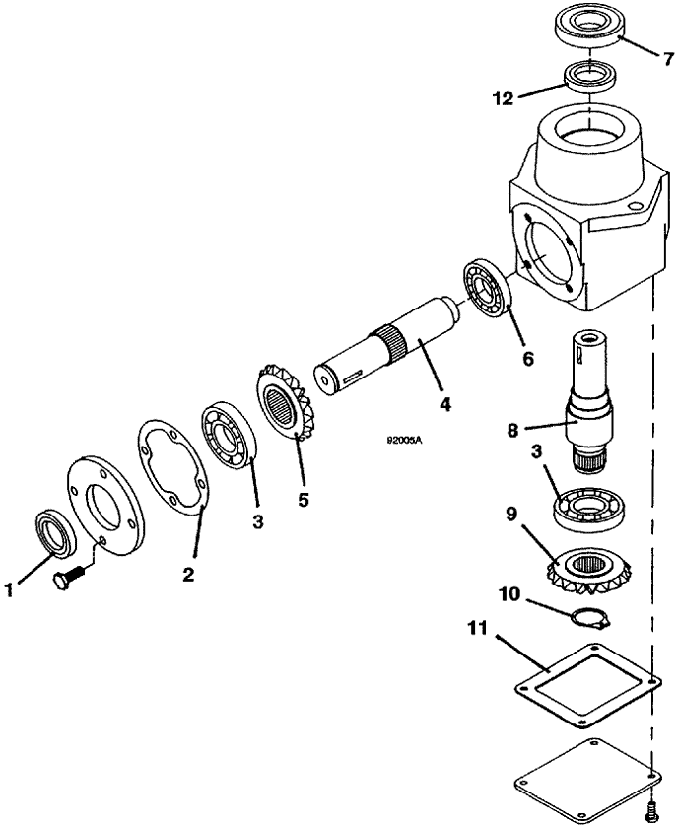

Right Angle Gearbox Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Seal

125336

2

Gasket

420201

3

Bearing

120071

4

Shaft

393517

5

Bevel Gear

392501

6

Bearing

120065

7

Bearing

110080

8

Shaft

393514

9

Bevel Gear

392500

10

Retainer

263540

11

Gasket

420200

12

Oil Seal

125345

13

Right Angle Counterclockwise Gearbox

390024
