Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

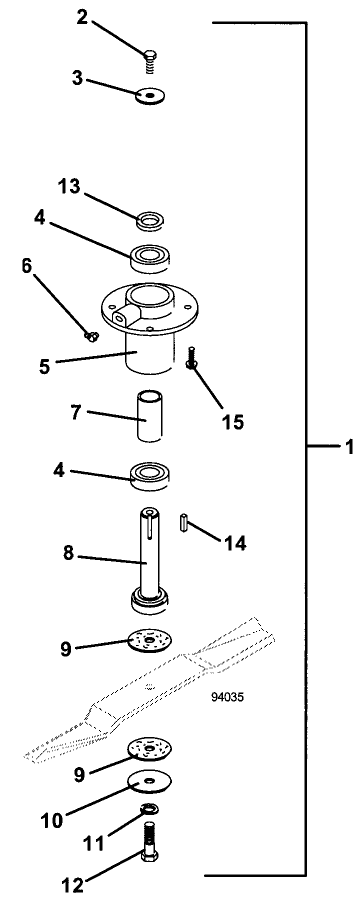

9361 • Blade Spindle Assembly

1996

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Spindle Assembly (includes items 2-13 and item 15)

623784

2

Bolt

243331

3

Washer

257041

4

Bearing

110082

5

Spindle Housing

320526

6

Grease Fitting

280734

7

Spacer

903640

8

Spindle Shaft

604770

9

Fiber Washer

421200

10

Washer

257061

11

Washer

257432

12

Bolt

243581

13

Spacer

282607

14

Square Key

281580

15

Bolt

253192
