Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

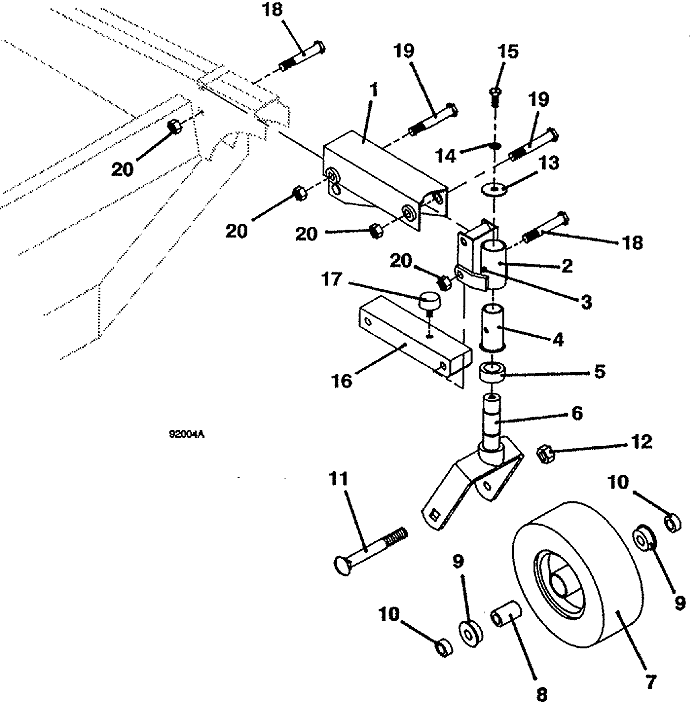

9361 • Wheel Lift Assembly

1996

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Lift Channel - Upper Right

643500

-

Lift Channel - Upper Left

643501

2

Fork Mount - Right

603351

-

Fork Mount - Left

603352

3

Zerk Grease Fitting

280776

4

Flanged Bushing

833260

5

Spacer

902541

6

Fork

604350

-

O Ring

425514

7

Wheel & Tire Assembly w/Bearings & Spacer

603971

8

Spacer

902473

9

Bearing

120050

10

Spacer

902415

11

Carriage Bolt

247715

12

Lock Nut

253970

13

Washer

774014

14

Lock Washer

257412

15

Bolt

243331

16

Stabilizer with Bumper

822312

17

Rubber Bumper

424052

18

Bolt

243609

19

Bolt

243614

20

Lock Nut

253930
