grasshopper

9544
44" Deck

Year Model: 2000

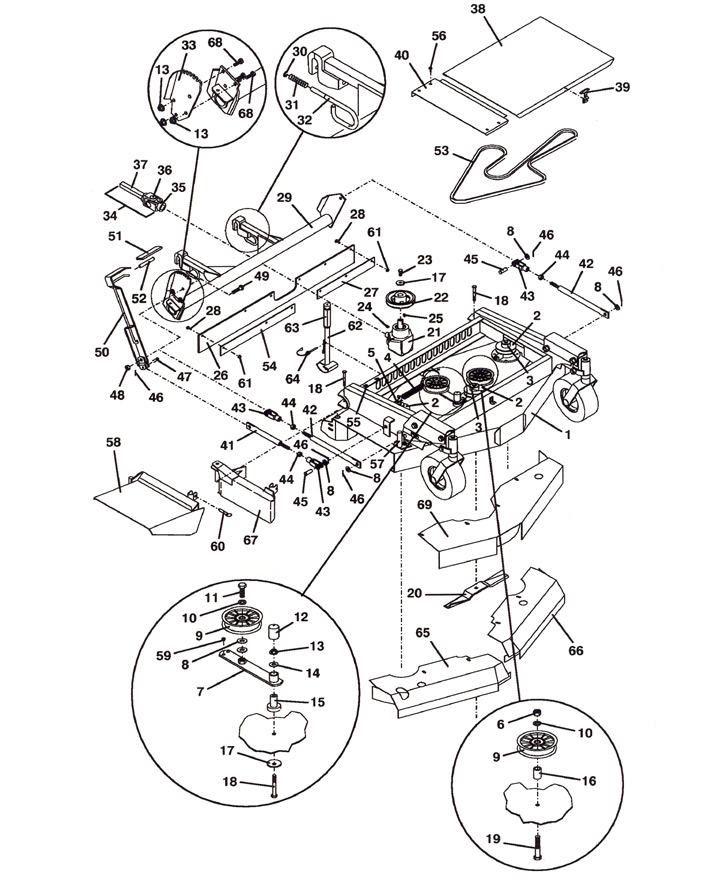

Mower Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1

Deck Weldment

643988

2

Sheave

414675

3

Spacer

282630

4

Extension Spring w/Swivel

283820

5

Idler Adjustment J Bolt

730391

6

Nut

254470

7

Idler Arm w/Bearing (includes item 15)

824502

8

Washer

257062

9

Idler

393225

10

Lock Washer

257432

11

Bolt

243565

12

Vinyl Cap

422098

13

Whiz Nut

253043

14

Flat Washer

257040

15

Bearing Pedestal

121650

16

Idler Spacer

902325

17

Cupped Washer

257041

18

Bolt

243365

19

Bolt

243600

20

Blade 15 Inch - Medium Lift (Uses 3)

320231

-

Blade 15 Inch - Notched High Lift (Uses 3)

320234

-

Blade 15 Inch - Contour (Uses 3)

320233

21

Gear Box Right Angle CCW

390024

22

Sheave

415876

23

Bolt

243331

24

Woodruff Key

281833

25

Woodruff Key

281828

26

Deck Flap

424191

27

Deflector Strap - Left

774249

28

Whiz Bolt

253177

29

Lift Arm

603551

30

External Retainer

263490

31

Spring

283285

32

Deck Mount Latch Pin

730433

33

Upper Lever Mount

726100

34

Half Shaft Assembly

398523

35

Yoke

401010

36

Cross & Bearing

121010

37

Yoke & Shaft

402599

38

Belt Shield Assembly

603748

39

Rubber Draw Latch

281301

40

Belt Shield - Right

722308

41

Linkage Assembly - Lift Lever (Includes 43&44)

603562

42

Linkage Arm (Includes 43&44)

603563

43

Clevis Yoke

265565

44

Jam Nut

254493

45

Clevis Pin

261426

46

Cotter Pin

260650

47

Clevis Pin

261346

48

Lock Nut

253930

49

Bolt

243580

50

Deck Lift Lever

643529

51

Handle Grip

422155

52

Handle Grip

422158

53

Belt

383010

54

Defector Strap - Right

782571

55

Speed Nut

254431

56

Whiz Bolt

253173

57

Clevis Shaft

643235

58

Discharge Shield

644751

59

Nylon Bearing

422520

60

Hitch Pin

260400

61

Whiz Nut

253025

62

Deck Stand (includes item 71)

603808

63

Handle Grip

422175

64

Linchpin

261624

65

Front Shroud - Right - Optional

644240

66

Front Shroud - Left - Optional

644241

67

Discharge Restriction Plate - Optional

643691

68

Bolt

243330

69

Air Foil

644199

-

(Item Not Pictured) Decal Set - Mower Safety

603281
