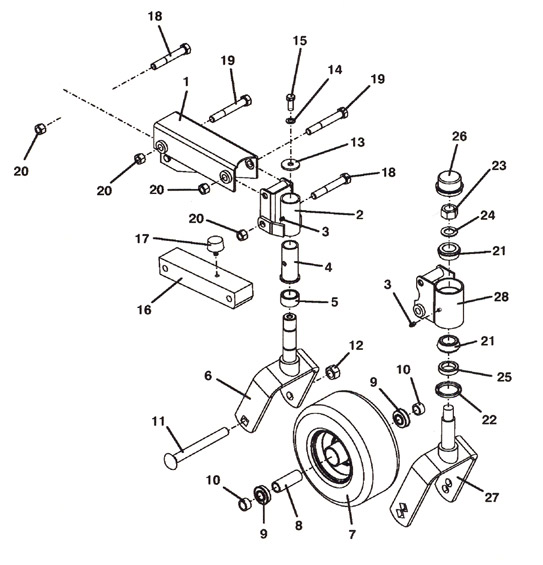

Item # |
Description |
Part Number |
1 |
Lift Channel - Upper Right |
643500 |
- |
Lift Channel - Upper Left |
643501 |
2 |
Fork Mount w/Bearing - Right |
603351 |
- |
Fork Mount w/Bearing - Left |
603352 |
3 |
Grease Fitting |
280776 |
4 |
Flanged Bearing |
833260 |
5 |
Spacer |
282629 |
6 |
Deck Fork w/O Rings |
604350 |
- |
O Ring |
425514 |
7 |
Wheel & Tire - Flat Proof w/Bearings & Spacer |
603971 |
8 |
Wheel Bearing Spacer |
902473 |
9 |
Ball Bearing |
120050 |
10 |
Axle Spacer |
902415 |
11 |
Carriage Bolt |
247715 |
12 |
Lock Nut |
253970 |
13 |
Washer |
774014 |
14 |
Lock Washer |
257412 |
15 |
Bolt |
243331 |
16 |
Stabilizer - Deck Lift |
822312 |
17 |
Rubber Bumper |
424052 |
18 |
Bolt |
243609 |
19 |
Bolt |
243614 |
20 |
Lock Nut |
253930 |
21 |
Bearing - Tapered (HD Option) |
122522 |
22 |
Seal (HD Option) |
125855 |
23 |
Lock Nut (HD Option) |
253992 |
24 |
Washer (HD Option) |
247091 |
25 |
Spacer (HD Option) |
282615 |
26 |
Dust Cap (HD Option) |
481432 |
27 |
Fork (HD Option) |
644221 |
28 |
Fork Housing - Right (HD Option) |
824982 |
