grasshopper

9548
48" Deck

Year Model: 1999

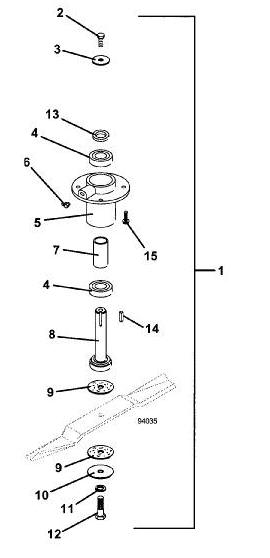

Blade Spindle Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1

SPINDLE ASSY - BLADE 623784
  SPINDLE ASSY - 9561 LT/CTR 623783
2 HEX BOLT 243331
3 WASHER - CUPPED 257041
4 BEARING - BALL SINGLE SEAL 110082
5 SPINDLE HOUSING GREASE 320526
6 FITTING GREASE 280734
7 SPACER - BEARING TUBE 903640
8 SPINLDE ASSEMBLY - SHAFT 604770
  SPINDLE SHAFT ASSY 604768
9 WASHER - FIBER 421200
10 WASHER 257061
11 WASHER - LOCK 257432
12 HEX BOLT 243581
13 SPACER 282607
14 KEY SQUARE 281580
  KEY SQUARE 281583
15 BOLT WHIZ HEX FLANGE 253192
16 SPACER 282630
