grasshopper

9548
48" Deck

Year Model: 2000

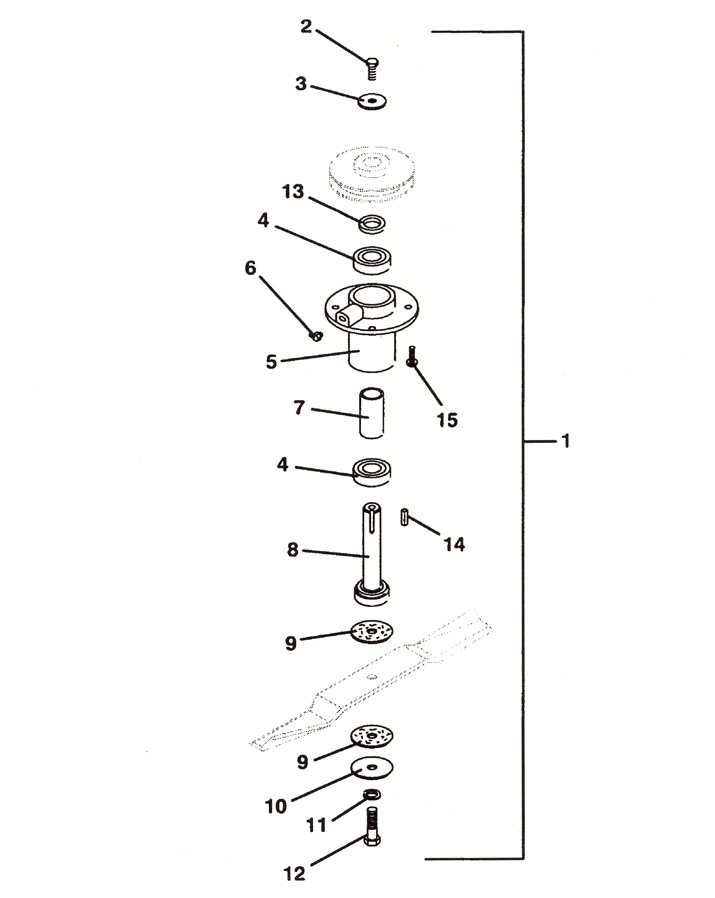

Blade Spindle Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1

Blade Spindle Assembly (right)

623784

-

Blade Spindle Assembly (left & center)

623783

2

Bolt

243331

3

Cupped Washer

257041

4

Ball Bearing

110082

5

Spindle Housing

320526

6

Grease Fitting

280734

7

Bearing Spacer Tube

903640

8

Blade Spindle (right)

604770

-

Blade Spindle (left & center)

604768

9

Fiber Washer

421200

10

Flat Washer

257061

11

Lock Washer

257432

12

Bolt

243581

13

Spacer

282607

14

Square Key (right spindle)

281580

-

Square Key (left & center spindle)

281583

15

Whiz Bolt

253192
