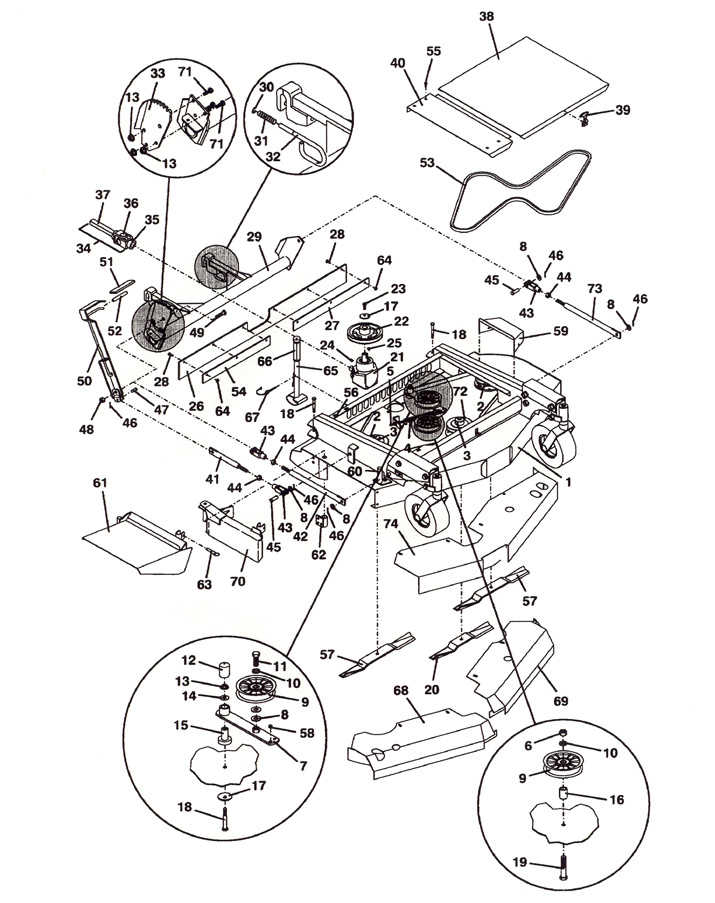

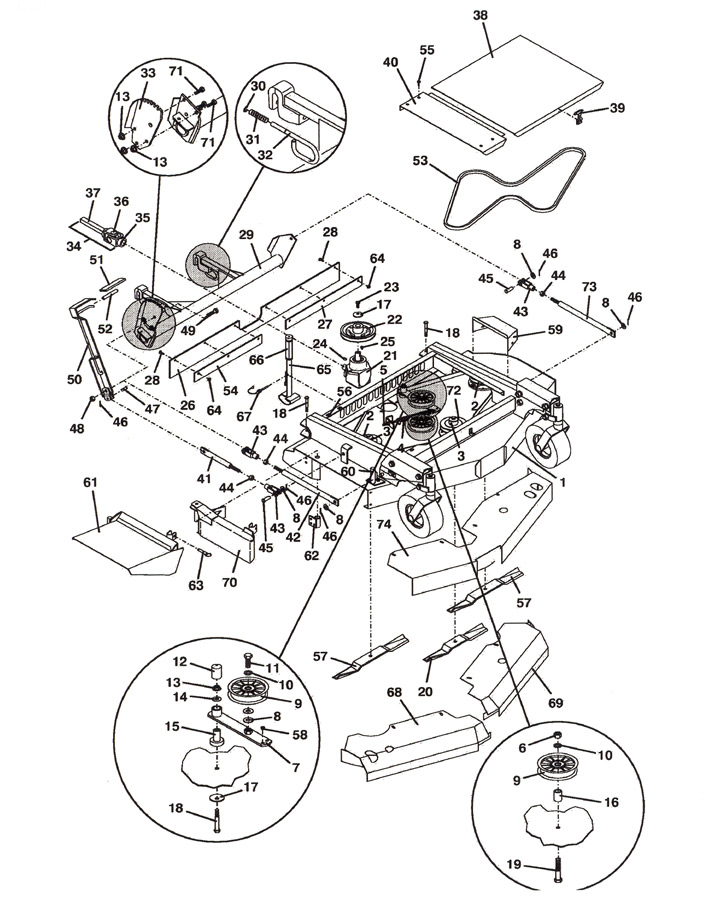

Item # |
Description |
Part Number |
1 |
Deck Weldment |
603286 |
2 |
Sheave |
414696 |
3 |
Spacer |
282630 |
4 |
Extension Spring w/Swivel |
283820 |
5 |
Idler Adjustment J Bolt |
730391 |
6 |
Nut |
254470 |
7 |
Idler Arm w/Bearing (includes items 15 & 72) |
824502 |
8 |
Washer |
257062 |
9 |
Idler |
393225 |
10 |
Lock Washer |
257432 |
11 |
Bolt |
243565 |
12 |
Vinyl Cap |
422098 |
13 |
Whiz Nut |
253043 |
14 |
Flat Washer |
257040 |
15 |
Bearing Pedestal |
121650 |
16 |
Idler Spacer |
902325 |
17 |
Cupped Washer |
257041 |
18 |
Bolt |
243365 |
19 |
Bolt |
243600 |
20 |
Blade 15 Inch - Medium Lift (Uses 1) |
320231 |
- |
Blade 15 Inch - Notched High Lift (Uses 1) |
320234 |
- |
Blade 15 Inch - Contour (Uses 1) |
320233 |
21 |
Gear Box Right Angle CCW |
390024 |
22 |
Sheave |
415886 |
23 |
Bolt |
243331 |
24 |
Woodruff Key |
281833 |
25 |
Woodruff Key |
281828 |
26 |
Deck Flap |
424192 |
27 |
Deflector Strap - Left |
782569 |
28 |
Whiz Bolt |
253177 |
29 |
Lift Arm |
603576 |
30 |
External Retainer |
263490 |
31 |
Spring |
283285 |
32 |
Deck Mount Latch Pin |
730433 |
33 |
Upper Lever Mount |
726100 |
34 |
Half Shaft Assembly |
398525 |
35 |
Yoke |
401010 |
36 |
Cross & Bearing |
121010 |
37 |
Yoke & Shaft |
402605 |
38 |
Belt Shield Assembly |
604722 |
39 |
Rubber Draw Latch |
281301 |
40 |
Belt Shield - Right |
722281 |
41 |
Linkage Assembly - Lift Lever (Includes 43&44) |
603562 |
42 |
Linkage Arm - Right (Includes 43&44) |
603572 |
43 |
Clevis Yoke |
265565 |
44 |
Jam Nut |
254493 |
45 |
Clevis Pin |
261426 |
46 |
Cotter Pin |
260650 |
47 |
Clevis Pin |
261346 |
48 |
Lock Nut |
253930 |
49 |
Bolt |
243580 |
50 |
Deck Lift Lever |
643529 |
51 |
Handle Grip |
422155 |
52 |
Handle Grip |
422158 |
53 |
Belt |
383008 |
54 |
Defector Strap - Right |
782591 |
55 |
Whiz Bolt |
253173 |
56 |
Speed Nut |
254431 |
57 |
Blade 18 Inch - Medium Lift (Uses 2) |
320236 |
- |
Blade 18 Inch - Notched High Lift (Uses 2) |
320239 |
- |
Blade 18 Inch - Contour (Uses 2) |
320238 |
58 |
Nylon Bearing |
422520 |
59 |
Belt Shield - Left |
722249 |
60 |
Clevis Shaft |
643235 |
61 |
Discharge Shield |
644751 |
62 |
Pivot Mount |
643632 |
63 |
Hitch Pin |
260400 |
64 |
Whiz Nut |
253025 |
65 |
Deck Stand |
603808 |
66 |
Handle Grip |
422175 |
67 |
Linchpin |
261624 |
68 |
Front Shroud - Right - Optional |
643194 |
69 |
Front Shroud - Left- Optional |
643195 |
70 |
Discharge Restriction Plate - Optional |
643691 |
71 |
Bolt |
243330 |
72 |
Sheave |
414865 |
73 |
Linkage Arm - Left (includes 43&44) |
603573 |
74 |
Air Foil |
644192 |
- |
(Item Not Pictured) Decal Set - Mower Safety |
603280 |
