grasshopper

9548
48" Deck

Year Model: 2002

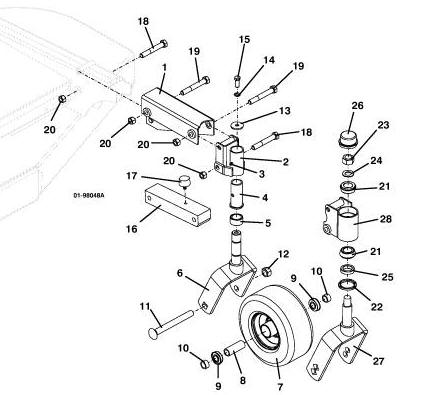

Wheel Lift Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1

LIFT CHANNEL - UPPER RT 643500
  LIFT CHANNEL - UPPER 643501
2 FORK MOUNT W/BEARING RT. 603351
  FORK MOUNT W/BEARING LT. 603352
3 FITTING GREASE 280776
4 BUSHING - FLANGED SINTERED 833260
5 SPACER 902541
6 FOKR - DECK 90 SERIES 604350
  O-RING 425514
7 WHEEL ASSY - -4 SEMI-PNEU 603971
8 SPACER - DECK WHEEL BRG 902473
9 BEARING - BALL 120050
10 SPACER - AXLE 902415
11 CARRIAGE BOLT 247715
12 NUT LOCK 253970
13 WASHER 774014
14 WASHER - LOCK 257412
15 HEX BOLT 243331
16 STABILIZER W/BUMPER - DECK 822312
17 RUBBER BUMPER 424052
18 HEX BOLT 243609
19 HEX BOLT 243614
20 NUT LOCK 253930
21 BEARING - TAPER 122522
22 SEAL 125855
23 NUT LOCK 253992
24 WASHER - 14 GA BUSHING 257091
25 SPACER 282615
26 CAP - DUST 481432
27 FORK - TAPERED BEARING 644221
28 FORK HOUSING - DECK HD 824982
