Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

9552 • Right Angle Gearbox

1999

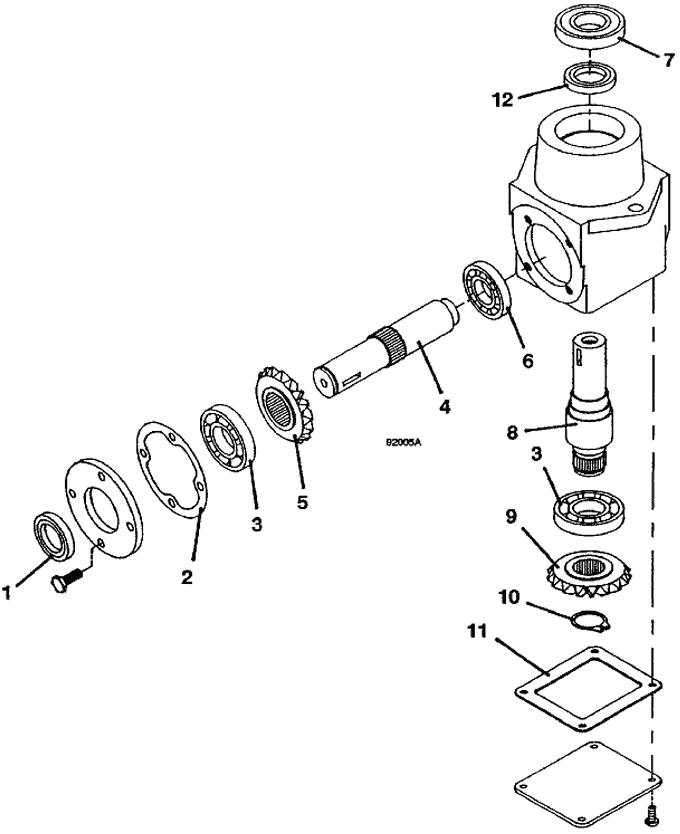

Right Angle Gearbox Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Seal

125336

2

Gearbox Cap Gasket

420201

3

Ball Bearing

120071

4

1.000 Shaft

393517

5

.995 8 Pitch Bevel Gear

392501

6

Ball Bearing

120065

7

25mm 2 Metal Seal Ball Bearing

110080

8

.875 Shaft

393514

9

.865 8 Pitch Bevel Gear

392500

10

External Retainer

263540

11

Gearbox Cover Gasket

420200

12

Oil Seal

125345

13

Counter Clockwise Gear Box Assembly

390024

return to 9552 index return to top of page
