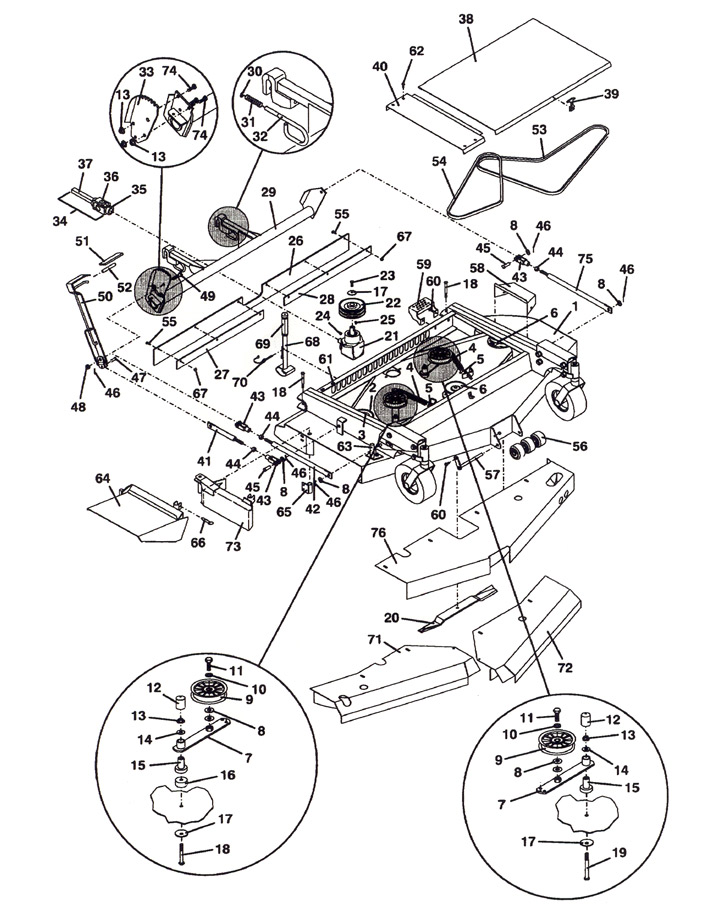

Item # |
Description |
Part Number |
1 |
Deck Weldment |
603288 |
2 |
Sheave |
415867 |
3 |
Spacer |
282630 |
4 |
Extension Spring w/Swivel |
283820 |
5 |
Idler Adjustment J Bolt |
730391 |
6 |
Sheave |
414696 |
7 |
Idler Arm w/Bearing & Pedestal (includes item 15) |
824502 |
8 |
Washer |
257062 |
9 |
Idler |
393225 |
10 |
Lock Washer |
257432 |
11 |
Bolt |
243565 |
12 |
Vinyl Cap |
422098 |
13 |
Whiz Nut |
253043 |
14 |
Flat Washer |
257040 |
15 |
Bearing Pedestal |
121650 |
16 |
Spacer - Idler Arm |
902317 |
17 |
Cupped Washer |
257041 |
18 |
Bolt |
243565 |
19 |
Bolt |
243385 |
20 |
Blade 21 Inch - Medium Lift (Uses 3) |
320242 |
- |
Blade 21 Inch - Notched High Lift (Uses 3) |
320245 |
- |
Blade 21 Inch - Contour (Uses 3) |
320244 |
21 |
Gear Box Right Angle CCW |
390024 |
22 |
Sheave |
416116 |
23 |
Bolt |
243331 |
24 |
Woodruff Key |
281833 |
25 |
Woodruff Key |
281828 |
26 |
Rubber Deflector |
424194 |
27 |
Deflector Strap - Right |
782598 |
28 |
Deflector Strap - Left |
775208 |
29 |
Lift Arm |
603559 |
30 |
External Retainer |
263490 |
31 |
Spring |
283285 |
32 |
Deck Mount Latch Pin |
730433 |
33 |
Upper Lever Mount |
726100 |
34 |
Half Shaft Assembly |
398525 |
35 |
Yoke |
401010 |
36 |
Cross & Bearing |
121010 |
37 |
Yoke & Shaft |
402605 |
38 |
Belt Shield Assembly |
604728 |
39 |
Rubber Draw Latch |
281301 |
40 |
Belt Shield - Right |
722322 |
41 |
Linkage Assembly - Lift Lever (Includes 43&44) |
603562 |
42 |
Linkage Arm - Right (Includes 43&44) |
603568 |
43 |
Clevis Yoke |
265565 |
44 |
Jam Nut |
254493 |
45 |
Clevis Pin |
261426 |
46 |
Cotter Pin |
260650 |
47 |
Clevis Pin |
261346 |
48 |
Lock Nut |
253930 |
49 |
Bolt |
243580 |
50 |
Deck Lift Lever |
643529 |
51 |
Handle Grip |
422155 |
52 |
Handle Grip |
422158 |
53 |
Belt |
382865 |
54 |
Belt |
382025 |
55 |
Whiz Bolt |
253177 |
56 |
Roller (3 Required) |
426122 |
57 |
Roller Pin |
644512 |
58 |
Belt Shield - Left |
722249 |
59 |
Step |
729283 |
60 |
Whiz Bolt |
253192 |
- |
Whiz Nut |
253035 |
61 |
Speed Nut |
254431 |
62 |
Whiz Bolt |
253173 |
63 |
Clevis Shaft |
643235 |
64 |
Discharge Shield |
644751 |
65 |
Pivot Mount |
643632 |
66 |
Hitch Pin |
260400 |
67 |
Whiz Nut |
253025 |
68 |
Deck Stand (Includes Item 69) |
603808 |
69 |
Handle Grip |
422175 |
70 |
Linchpin |
261624 |
71 |
Front Shroud - Right (Optional) |
643190 |
72 |
Front Shroud - Left (Optional) |
643191 |
73 |
Discharge Restriction Plate (Optional) |
643691 |
74 |
Bolt |
243330 |
75 |
Linkage Arm - Left (Includes 43&44) |
603571 |
76 |
Air Foil |
644195 |
77 |
Nylon Bearing |
422520 |
- |
Decal Set - Mower Safety |
603280 |
