grasshopper

9561
61" Deck

Year Model: 2003

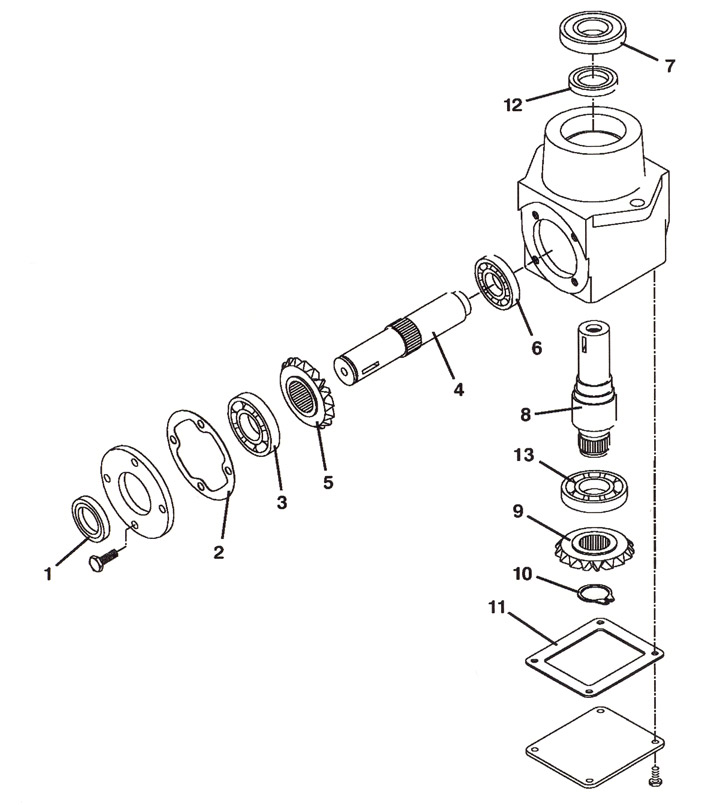

Right Angle Gearbox


Click On The Part Number For Details

Item #

Description

Part Number

-

Gear Box Assembly CCW

390024

1

Seal

125336

2

Gasket - Cap

420201

3

Bearing

120071

4

Shaft

393517

5

Bevel Gear

392501

6

Bearing

120065

7

Bearing

110080

8

Shaft (used on manufact part # 1000-067A)*

393512

8a

Shaft (used on manufact part # 1000-067)*

393514

9

Bevel Gear

392500

10

Retainer Extension

263540

11

Gasket - Cover

420200

12

Seal - Oil

125345

13

Bearing (Used on manufact part # 1000-067A)*

120072

13a

Bearing (Used on manufact part # 1000-067)*

120071

* Check metal tag on gear box.
