Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

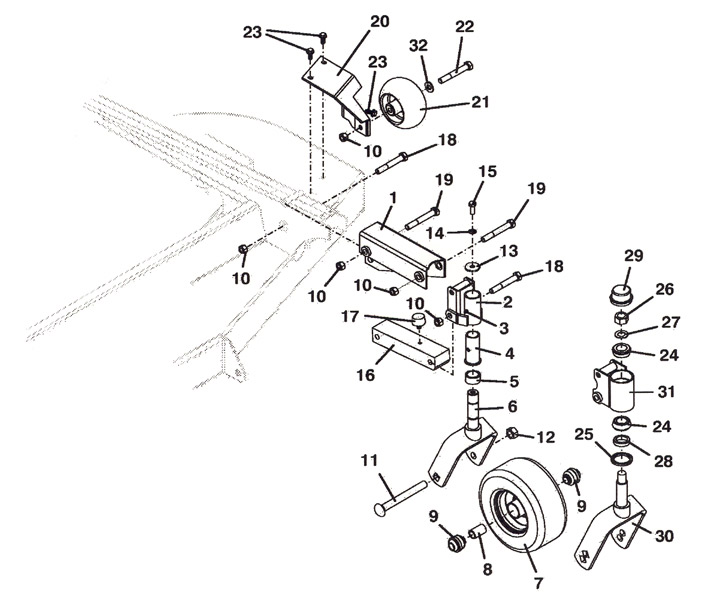

3561 61" Discharge Deck • Wheel Lift Assembly

2003

Wheel Lift Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Lift Channel - Upper Right

643500

-

Lift Channel - Upper Left

643501

2

Fork Mount w/Bearing - Right

603351

-

Fork Mount w/Bearing - Left

603352

3

Grease Fitting

280776

4

Flanged Bearing

833260

5

Spacer

902541

6

Deck Fork w/O Rings

604350

-

O Ring

425514

7

Wheel & Tire - Flat Proof w/Bearings & Spacer

603973

8

Wheel Bearing Spacer

902428

9

Ball Bearing

120048

10

Lock Nut

253930

11

Carriage Bolt

247715

12

Lock Nut

253970

13

Washer

774014

14

Lock Washer

257412

15

Bolt

243331

16

Stabilizer - Deck Lift

822312

17

Rubber Bumper

424052

18

Bolt

243609

19

Bolt

243614

20

Roller Mount

824627

21

Roller - Anti Scalp

484225

22

Bolt

243610

23

Whiz Bolt

253192

-

Whiz Nut

253035

24

Bearing - Tapered (HD Option)

122522

25

Seal (HD Option)

125855

26

Lock Nut (HD Option)

253992

27

Washer (HD Option)

247091

28

Spacer (HD Option)

282615

29

Dust Cap (HD Option)

481432

30

Fork (HD Option)

644221

31

Fork Housing - Right (HD Option)

824982

32

Washer

257062
