Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

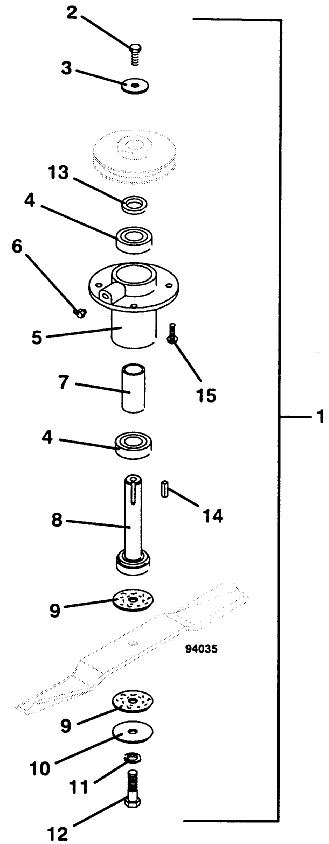

9652 • Blade Spindle Assembly

1999

Blade Spindle Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

right Blade Spindle Assembly (includes items 2 - 13 and 15)

623784

-

left/center Blade Spindle Assembly (includes items 2 - 13 and 15)

623783

2

Bolt

243331

3

Cupped Washer

257041

4

Ball Bearing

110082

5

Spindle Housing

320526

6

Grease Fitting

280734

7

Bearing Spacer Tube

903640

8

Blade Spindle (right)

604770

-

Blade Spindle (left & center)

604768

9

Fiber Washer

421200

10

Flat Washer

257061

11

Lock Washer

257432

12

Bolt

243581

13

Spacer

282607

14

Square Key (right spindle)

281580

-

Square Key (left & center spindle)

281583

15

Whiz Bolt

253192
