Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

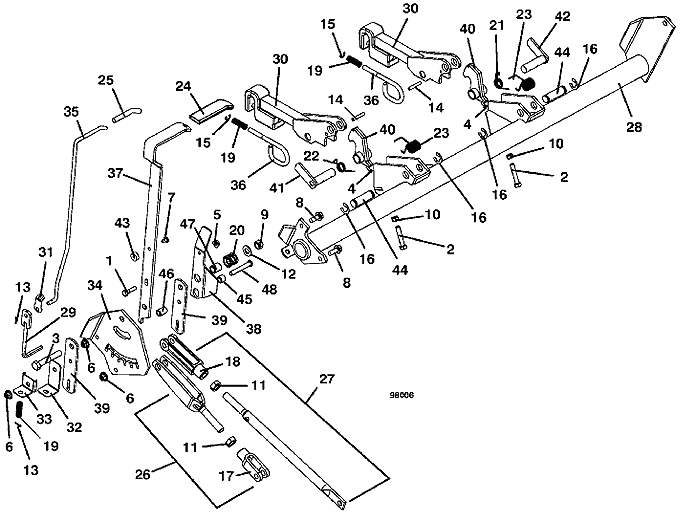

9652 • Lift Arm Assembly

1999

Lift Arm Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hex Bolt

24310

2

Hex Bolt

243347

3

Hex Bolt

243600

4

Hex Machine Screw

250169

5

Whiz Nut

253035

6

Whiz Nut

253043

7

Truss Whiz Bolt

253176

8

Flange Whiz Bolt

253203

9

Lock Nut

253930

10

Nut

254450

11

Nut

254493

12

Washer

257062

13

Cotter Pin

260624

14

Roll Pin

261016

15

External Retainer

263490

16

External Retainer

263529

17

Clevis Yoke

265565

18

Long Clevis Yoke

265566

19

Compression Spring

283285

20

Compression Spring

283332

21

left Torsion Spring

284410

22

right Torsion Spring

284411

23

Torsion Spring

284413

24

Handle Grip

422155

25

Handle Grip

422158

26

Lower Linkage Arm

603042

27

right 9661 Linkage Arm Assembly

603574

28

9652 Lift Arm

644485

29

Lower Lift Lever Latch

644523

30

96 Series Mount Arm Assembly

603589

31

Lever Rod Clip

720121

32

Lower Latch Guide

723010

33

Upper Latch Guide

723013

34

Deck Tilt Lever Mount

726094

35

Tilt Lever Rod

730368

36

Deck Mount Latch Pin

730433

37

Deck Lift Tilt Lever

733011

38

Tilt Lever Latch Arm

755035

39

Tilt Lever Linkage Strap

782580

40

Drilled Latch

824559

41

right SL Deck Latch Pin

824562

42

left SL Deck Latch Pin

824563

43

Lever Rod Spacer

881099

44

Tilt Arm Shaft

881111

45

Spacer

902275

46

Tilt Latch Spacer

902279

47

Latch Guide Spacer

902287

48

Dome Head Bolt

830045
