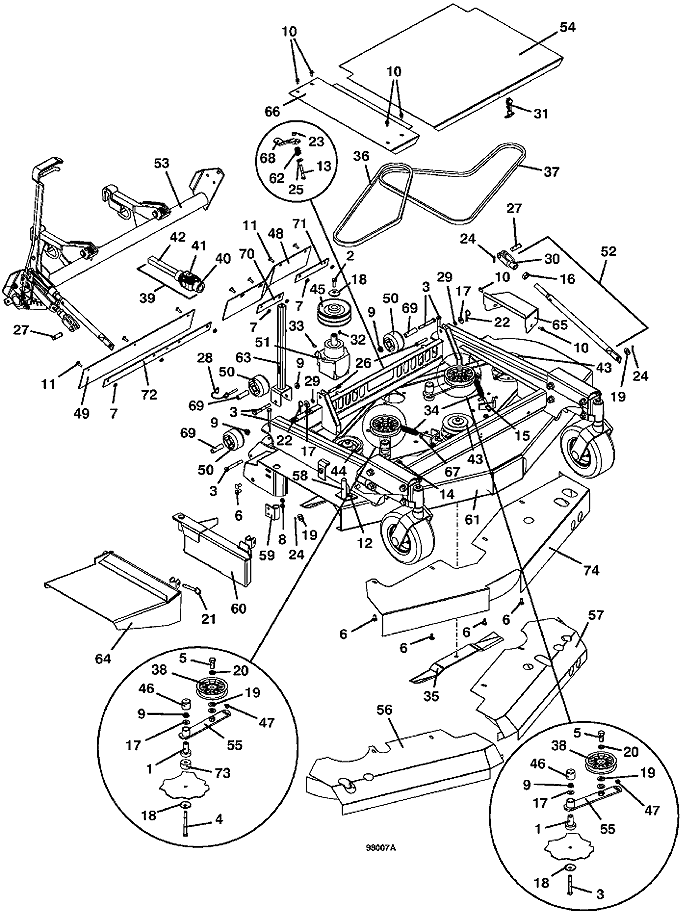

Item # |
Description |
Part Number |
1 |
Bearing Pedestal |
121650 |
2 |
Bolt |
243331 |
3 |
Bolt |
243365 |
4 |
Bolt |
243385 |
5 |
Bolt |
243564 |
6 |
Carriage Bolt |
247130 |
7 |
Nut |
253025 |
8 |
Nut |
253035 |
9 |
Nut |
253043 |
10 |
Bolt |
253173 |
11 |
Bolt |
253177 |
12 |
Bolt |
253192 |
13 |
Bolt |
243225 |
14 |
Nut |
254431 |
15 |
Nut |
254450 |
16 |
Nut |
254493 |
17 |
Washer |
257040 |
18 |
Cupped Washer |
257041 |
19 |
Washer |
257062 |
20 |
Lock Washer |
257432 |
21 |
Hitch Pin |
260400 |
22 |
Hair Pin |
260523 |
23 |
Nut w/Nylon Insert |
253450 |
24 |
Cotter Pin |
260650 |
25 |
Washer |
257030 |
26 |
Clevis Pin |
261362 |
27 |
Clevis Pin |
261426 |
28 |
Linch Pin |
261624 |
29 |
Push On Retainer |
262950 |
30 |
Clevis Yoke |
265565 |
31 |
Rubber Draw Latch |
281301 |
32 |
Woodruff Key |
281828 |
33 |
Woodruff Key |
281833 |
34 |
Extension Spring w/Swivel |
283820 |
35 |
Blade - 18 Inch - Medium Lift (3 Required) |
320236 |
- |
Blade - 18 Inch - Notched High Lift (3 Required) |
320239 |
- |
Blade - 18 Inch - Contour (3 Required) |
320238 |
36 |
Belt |
382810 |
37 |
Belt |
382840 |
38 |
Idler |
393225 |
39 |
UN Half Shaft |
398525 |
40 |
Yoke |
401010 |
41 |
Cross & Bearing |
121010 |
42 |
Yoke & Shaft |
402605 |
43 |
Sheave |
414696 |
44 |
Sheave |
415867 |
45 |
Sheave |
416130 |
46 |
Vinyl Cap |
422098 |
47 |
Nylon Bearing |
422520 |
48 |
Deck Flap - Left |
424198 |
49 |
Deck Flap - Right |
424197 |
50 |
Roller - 3 x 2" |
426122 |
51 |
Right Angle Gearbox |
390024 |
52 |
Linkage Assembly |
603573 |
53 |
Lift Arm Assembly |
604552 |
54 |
Shield Assembly |
604727 |
55 |
Idler Arm w/Bearing & Pedestal |
824502 |
56 |
Front Shroud - Right |
643192 |
57 |
Front Shroud - Left |
643193 |
58 |
Clevis Shaft |
643235 |
59 |
Pivot Mount |
643632 |
60 |
Discharge Filler |
643691 |
61 |
Deck |
643991 |
62 |
Compression Spring |
283324 |
63 |
Jack Stand w/Roller Assembly |
604485 |
64 |
Discharge Shield |
644751 |
65 |
Belt Shield - Left |
722249 |
66 |
Belt Shield - Right |
722281 |
67 |
'J' Bolt |
730391 |
68 |
Clamp |
732874 |
69 |
Spacer - Roller Mount |
902284 |
70 |
Strap - Inside |
774054 |
71 |
Strap - Outer |
774055 |
72 |
Strap - Right |
774218 |
73 |
Spacer |
902317 |
74 |
Air Foil |
644197 |
- |
Decal Set - Mower Safety |
603282 |
