Genuine OEM Grasshopper® Mower Parts Diagrams

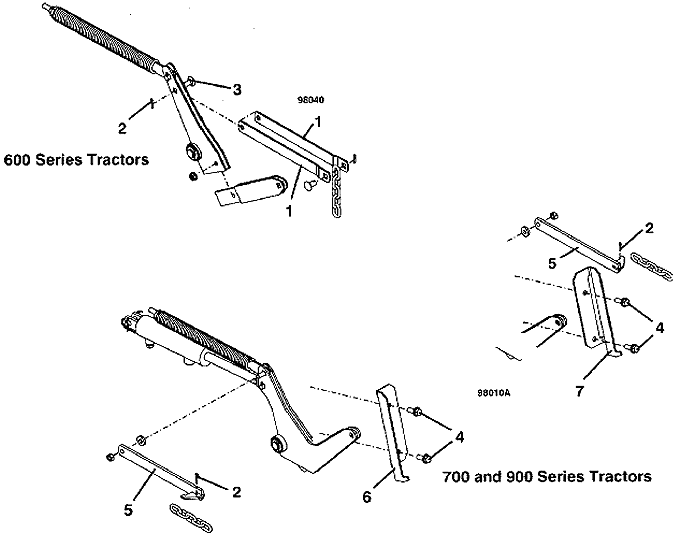

9652 • Traction Kit Adapter
1999
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Lift Strap for 600 Series Deck w/SL |
732410 |
2 |
Cotter Pin |
260648 |
3 |
Clevis Pin |
261339 |
4 |
Lock Washer |
253203 |
- |
Whiz Nut |
253043 |
5 |
Lift Strap for 600 Series Deck w/SL (requires 2) |
732410 |
- |
Cotter Pin |
260648 |
- |
Clevis Pin |
261336 |
6 |
right Chain Guide Bracket |
754031 |
7 |
left Chain Guide Bracket |
754032 |
- |
Lift Chain with 5 Links |
820320 |
