grasshopper

9652
52 " Deck

Year Model: 2000

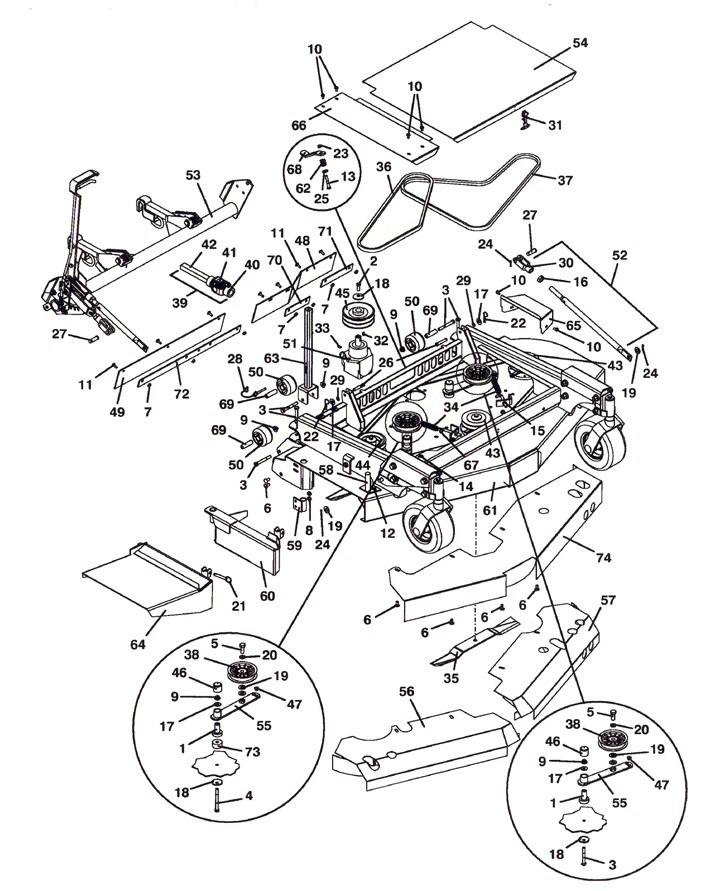

Mower Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1

Bearing Pedestal

121650

2

Bolt

243331

3

Bolt

243365

4

Bolt

243385

5

Bolt

243564

6

Carriage Bolt

247130

7

Nut

253025

8

Nut

253035

9

Nut

253043

10

Bolt

253173

11

Bolt

253177

12

Bolt

253192

13

Bolt

243225

14

Nut

254431

15

Nut

254450

16

Nut

254493

17

Washer

257040

18

Cupped Washer

257041

19

Washer

257062

20

Lock Washer

257432

21

Hitch Pin

260400

22

Hair Pin

260523

23

Nut w/Nylon Insert

253450

24

Cotter Pin

260650

25

Washer

257030

26

Clevis Pin

261362

27

Clevis Pin

261426

28

Linch Pin

261624

29

Push On Retainer

262950

30

Clevis Yoke

265565

31

Rubber Draw Latch

281301

32

Woodruff Key

281828

33

Woodruff Key

281833

34

Extension Spring w/Swivel

283820

35

Blade - 18 Inch - Medium Lift (3 Required)

320236

-

Blade - 18 Inch - Notched High Lift (3 Required)

320239

-

Blade - 18 Inch - Contour (3 Required)

320238

36

Belt

382810

37

Belt

382840

38

Idler

393225

39

UN Half Shaft

398525

40

Yoke

401010

41

Cross & Bearing

121010

42

Yoke & Shaft

402605

43

Sheave

414696

44

Sheave

415867

45

Sheave

416130

46

Vinyl Cap

422098

47

Nylon Bearing

422520

48

Deck Flap - Left

424198

49

Deck Flap - Right

424197

50

Roller - 3 x 2"

426122

51

Right Angle Gearbox

390024

52

Linkage Assembly

603573

53

Lift Arm Assembly

604552

54

Shield Assembly

604727

55

Idler Arm w/Bearing & Pedestal

824502

56

Front Shroud - Right

643192

57

Front Shroud - Left

643193

58

Clevis Shaft

643235

59

Pivot Mount

643632

60

Discharge Filler

643691

61

Deck

643991

62

Compression Spring

283324

63

Jack Stand w/Roller Assembly

604485

64

Discharge Shield

644751

65

Belt Shield - Left

722249

66

Belt Shield - Right

722281

67

'J' Bolt

730391

68

Clamp

732874

69

Spacer - Roller Mount

902284

70

Strap - Inside

774054

71

Strap - Outer

774055

72

Strap - Right

774218

73

Spacer

902317

74

Air Foil

644197

-

Decal Set - Mower Safety

603282
