grasshopper

9652
52 " Deck

Year Model: 2001

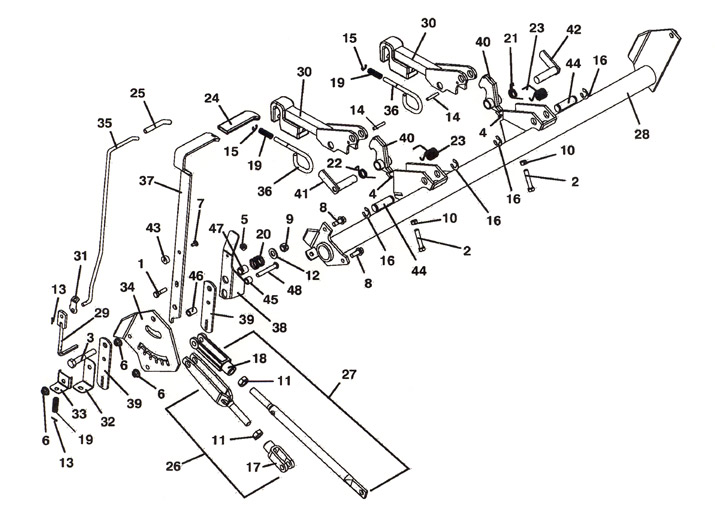

Lift Arm Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1

Bolt

243210

2

Bolt

243347

3

Bolt

243600

4

Screw

250169

5

Nut

253035

6

Nut

253043

7

Bolt

253176

8

Bolt

253203

9

Lock Nut

253930

10

Nut

254450

11

Nut

254493

12

Washer

257062

13

Cotter Pin

260624

14

Roll Pin

261016

15

Retainer

263490

16

Retainer

263529

17

Clevis Yoke

265565

18

Clevis Yoke

265566

19

Compression Spring

283285

20

Compression Spring

283332

21

Torsion Spring - Left

284410

22

Torsion Spring - Right

284411

23

Spring

284413

24

Handle Grip

422155

25

Handle Grip

422158

26

Arm

603042

27

Linkage Arm - Right

603574

28

Lift Arm

644485

29

Lift Lever

644523

30

Mount Arm Assembly

603589

31

Clip

720121

32

Latch Guide

723010

33

Latch Guide

723013

34

Lever Mount

726094

35

Rod

730368

36

Latch Pin

730433

37

Lever

733011

38

Latch Arm

755035

39

Linkage Strap

782580

40

Latch

824559

41

Latch Pin

824562

42

Latch Pin

824563

43

Spacer

881099

44

Shaft

881111

45

Spacer

902275

46

Spacer

902279

47

Spacer

902287

48

Bolt

830045
