9652
52
" Deck
Year Model: 2001

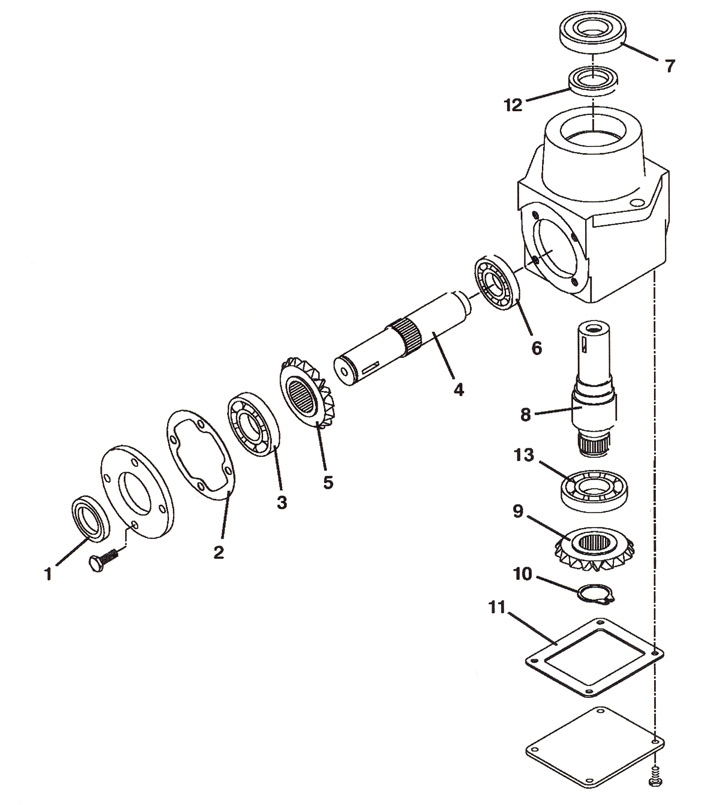

Right Angle Gearbox
Click On The Part Number For Details
Item # |
Description |
Part Number |
- |
Gear Box Assembly CCW |
390024 |
1 |
Seal |
125336 |
2 |
Gasket - Cap |
420201 |
3 |
Bearing |
120071 |
4 |
Shaft |
393517 |
5 |
Bevel Gear |
392501 |
6 |
Bearing |
120065 |
7 |
Bearing |
110080 |
8 |
Shaft (used on manufact part # 1000-067A)* |
393512 |
- |
Shaft (used on manufact part # 1000-067)* |
393514 |
9 |
Bevel Gear |
392500 |
10 |
Retainer Extension |
263540 |
11 |
Gasket - Cover |
420200 |
12 |
Seal - Oil |
125345 |
13 |
Bearing (Used on manufact part # 1000-067A)* |
120072 |
- |
Bearing (Used on manufact part # 1000-067)* |
120071 |
* Check metal tag on gearbox.
|
