grasshopper

9652
52 " Deck

Year Model: 2002

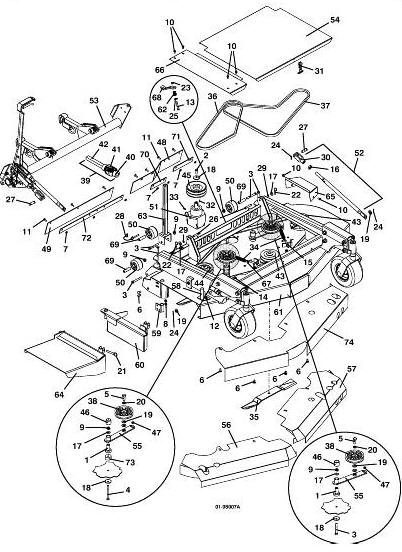

Mower Assembly


Click On The Part Number For Details

Item #

Description

Part Number
1 BEARING PEDESTAL 121650
2 EHX BOLT 243331
3 HEX BOLT 243365
4 HEX BOLT 243385
5 HEX BOLT 243565
6 CARRIAGE BOLT 247130
7 NUT WHIZ 253025
8 NUT WHIZ 253035
9 NUT WHIZ 253043
10 BOLT WHIZ HEX 253173
11 BOLT WHIZ TRUSS 253177
12 BOLT WHIZ HEX FLANGE 253192
13 HEX BOLT 243225
14 NUT 254431
15 NUT 254450
16 NUT 254493
17 WASHER 257040
18 WASHER - CUPPED 257041
19 WASHER 257062
20 WASHER - LOCK 257432
21 HITCH PIN 260400
22 HAIR PIN 260523
23 NUT INSERT NYLON 253450
24 COTTER PIN 260650
25 WASHER 257030
26 CLEVIS PIN 261362
27 CLEVIS PIN 261426
28 LINCH PIN 261624
29 RETAINER PUSH-ON 262950
30 YOKE CLEVIS 265565
31 LATCH RUBBER DRAW 281301
32 KEY WOODRUFF 281828
33 KEY WOODRUFF 281833
34 SPRING - EXTENSION W/SWIVEL 283820
35 BLADE -18 MED LIFT 320236
  BLADE -18 HI-LIFT NOTCH 320239
  BLADE-18 CONTOUR 320238
  BLADE -18 EXTREME HI-LIFT 320241
36 BELT 382810
37 BELT 382840
38 IDLER 393225
39 UN HALF SHAFT 398525
40 YOKE 401010
41 CROSS & BEARING 121010
42 YOKE & SHAFT 402605
43 SHEAVE 414696
44 SHEAVE 415867
45 SHEAVE 416130
46 CAP VINYL 1.125 ID 422098
47 NYLON BEARING 422520
48 FLAP DECK - 9652 LEFT 424189
49 FLAP DECK - 9652 RIGHT 424197
50 ROLLER 426122
51 GEARBOX RT ANGLE CCW 390024
52 LINKAGE ASSY - 9548.52 LT 603573
53 LIFT ARM ASSY - 9652 604552
54 SHIELD ASSY - 9652 604727
55 IDLER ARM W/BEARING & PEDESTAL 824502
56 FRONT SHROUD - 9552 RT 643192
57 FRONT SHROUD - 9552 LT 643193
58 SHAFT - CLEVIS 643235
59 MOUNT - PIVOT VAC HOUSING 643632
60 DISCHARGE FILLER 643691
61 DECK - 9652 W/A 643991
62 SPRING - COMPRESSION 283324
63 JACK STAND W/ROLLER ASSY 604485
64 SHIELD - DISCHARGE 95S 644751
65 SHIELD - BELT LT 722249
66 SHIELD - BELT RT 9548/52 722281
67 J BOLT - IDLER ADJUSTMENT 730391
68 CLAMP - SLIP YOKE 732874
69 SPACER - ROLLER 902284
70 STRAP - DEFLECTOR LT INSIDE 774054
71 STRAP - DEFLECTOR OUTER 9652 774055
72 STRAP - DEFLECTOR 9652 RT 774218
73 SPACER - IDLER ARM 902317
74 AIR FOIL - 95/9652 STRAIGHT 644197
75 DECAL SET - SL96/98 MOWER SAFETY 603282

* Check metal tag on gearbox.
