Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

9661 • Wheel Lift & Anti-Scalp Roller Assembly

1999

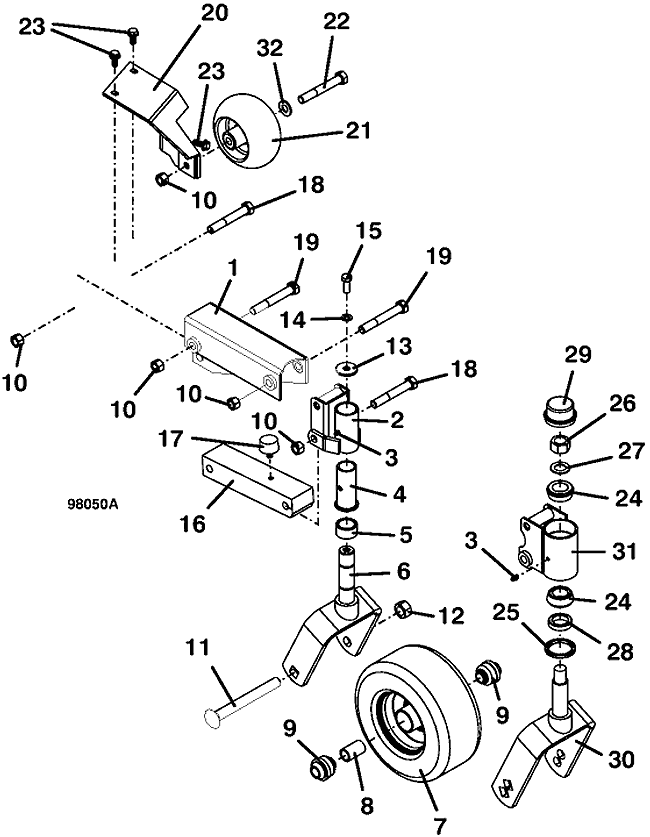

Wheel Lift and Anti-Scalp Roller Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Upper Right Lift Channel

643500

-

Upper Left Lift Channel

643501

2

Right Fork Mount with Bearing

603351

-

Left Fork Mount with Bearing

603352

3

Zerk Grease Fitting

280776

4

Flanged Sintered Bushing

833260

5

Spacer

902541

6

90 Series Deck Fork

604350

-

O-Ring

425514

7

9 x 3.5 x 4 Semi-Pneumatic Wheel Assembly with Bearing

603973

8

Center Axle Spacer

902428

9

DP Wheel Ball Bearing

120048

10

Lock Nut

253930

11

Carriage Bolt

247715

12

Lock Nut

253970

13

Washer

774014

14

Lock Washer

257412

15

Hex Bolt

243331

16

Deck Stabilizer with Bumper

822312

17

Rubber Bumper

424052

18

Hex Bolt

243609

19

Hex Bolt

243614

20

9561 Anti-Scalp Roller Mount

824627

21

Anti-Scalp Offset Hub Wheel

484225

22

Hex Bolt

243610

23

Hex Flange Whiz Bolt

253192

-

Whiz Nut

253035

24

Taper Bearing

122522

25

Seal

125855

26

Lock Nut

253992

27

14 GA Bushing Washer

257091

28

Spacer

282615

29

Dust Cap

281432

30

Tapered Bearing Fork

644221

31

Deck HD Fork Housing

824982

-

Machined Left Fork Housing

824981

32

Washer

257062
