Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

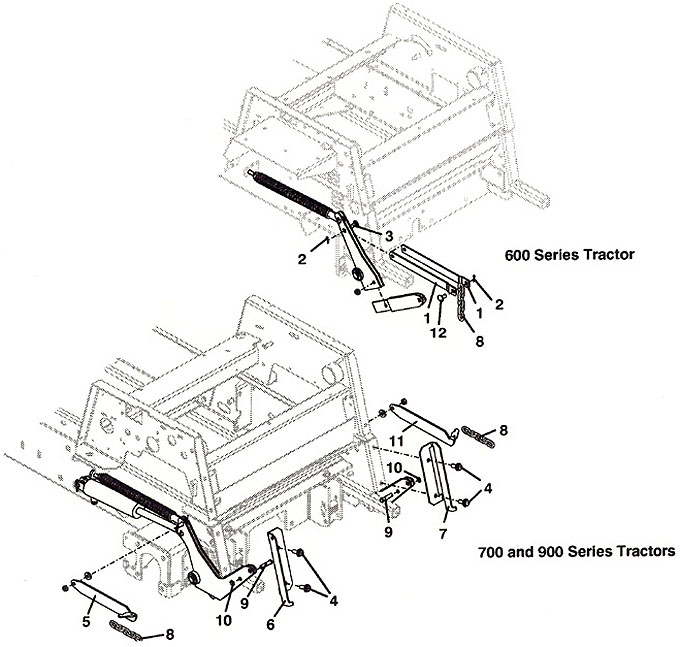

Traction Kit Adapter • Grasshopper 9852 Deck

2001

Traction Kit Adapter

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

600 w/SL Deck Lift Strap

732410

2

Cotter Pin

260648

3

Clevis Pin

261339

4

Whiz Flange Bolt

253203

-

Whiz Nut

253043

5

600 w/SL Deck Lift Strap

732410

-

Cotter Pin

260648

-

Clevis Pin

261336

6

right Chain Guide Bracket

754031

7

left Chain Guide Bracket

754032

8

Lift Chain

820320

9

Clevis Pin

261355

10

Push-On Retainer

261336
