Genuine OEM Grasshopper® Mower Parts Diagrams

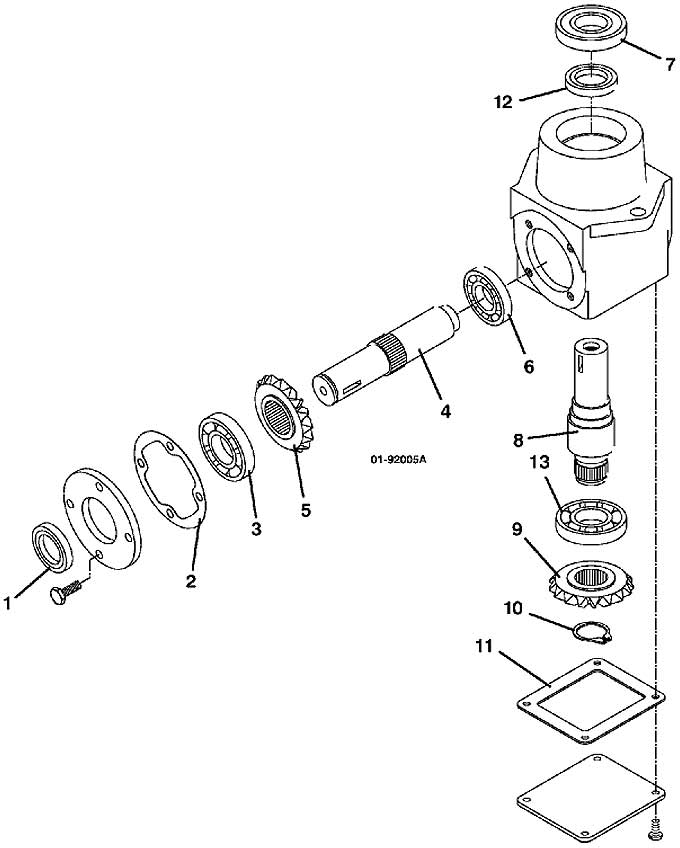

Right Angle Gearbox Assembly • Grasshopper 9861 Deck
2002
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Seal |
125336 |
2 |
Gearbox Cap Gasket |
420201 |
3 |
Ball Bearing |
120071 |
4 |
1.000 Shaft |
393517 |
5 |
8 Pitch .995 Bevel Gear |
392501 |
6 |
Ball Bearing |
120065 |
7 |
25mm 2 Metal Seal Ball Bearing |
110080 |
8 |
.875 Shaft used with Gearbox part number 1000-067A |
393512 |
- |
.875 Shaft used with Gearbox part number 1000-067 |
393514 |
9 |
8 Pitch .865 Bevel Gear |
392500 |
10 |
External Retainer |
263540 |
11 |
Gearbox Cover Gasket |
420200 |
12 |
Oil Seal |
125345 |
13 |
Ball Bearing used with Gearbox part number 1000-067A |
120072 |
- |
Ball Bearing used with Gearbox part number 1000-067 |
120071 |
14 |
Right Angle Counter-Clockwise Gearbox |
390024 |
