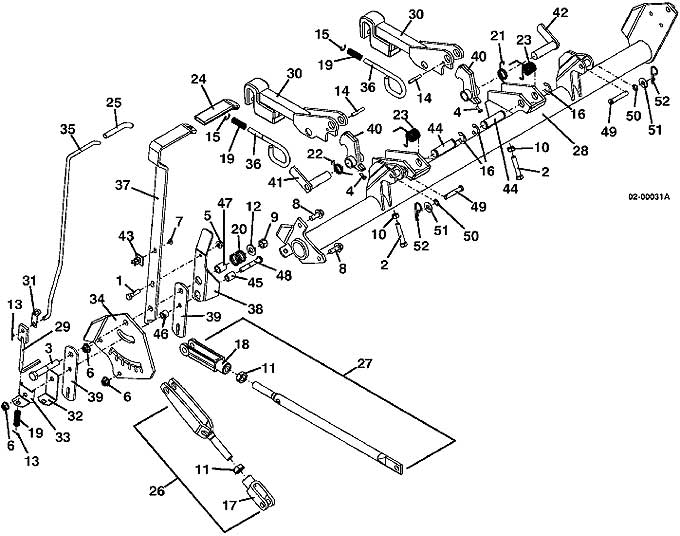

Lift Arm Assembly • Grasshopper 9852 Deck

2003

Lift Arm Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hex Bolt

243210

2

Hex Bolt

243347

3

Hex Bolt

243600

4

Hex Machine Screw

250169

5

Whiz Nut

253035

6

Whiz Nut

253043

7

#8 Screw

252041

8

Flange Whiz Bolt

253203

9

Lock Nut

253930

10

Nut

254450

11

Nut

254493

12

Washer

257062

13

Cotter Pin

260624

14

Roll Pin

261016

15

External Retainer

263490

16

External Retainer

263529

17

Clevis Yoke

265565

18

Long Clevis Yoke

265566

19

Compression Spring

283285

20

Compression Spring

283332

21

left Torsion Spring

284410

22

right Torsion Spring

284411

23

Torsion Spring

284413

24

Handle Grip

422155

25

Handle Grip

422158

26

Lower Arm Linkage

603042

27

9861 Deck right Linkage Arm

603593

28

9861 Lift Arm

644498

29

Lower Latch Lift Lever

644523

30

96 Series Arm Assembly Mount

603589

31

Rod Lever Clip

720121

32

Lower Latch Guide

723010

33

Upper Latch Guide

723013

34

Deck Tilt Lever Mount

726094

35

Tilt Lever Rod

730368

36

Deck Mount Latch Pin

730433

37

Deck Lift Tilt Lever

733011

38

Tilt Lever Arm Latch

755035

39

Tilt Lever Linkage Strap

782580

40

Drilled Latch

824559

41

right SL Deck Latch Pin

824562

42

left SL Deck Latch Pin

824563

43

Rod Retainer

423110

44

Tilt Arm Shaft

881111

45

Spacer

902275

46

Tilt Latch Spacer

902279

47

Latch Guide Spacer

902287

48

Dome Head Bolt

830045

49

Clevis Pin

261362

50

Push-On Retainer

262950

51

Washer

257040

52

Hair Pin

260523
