Genuine OEM Grasshopper® Mower Parts Diagrams

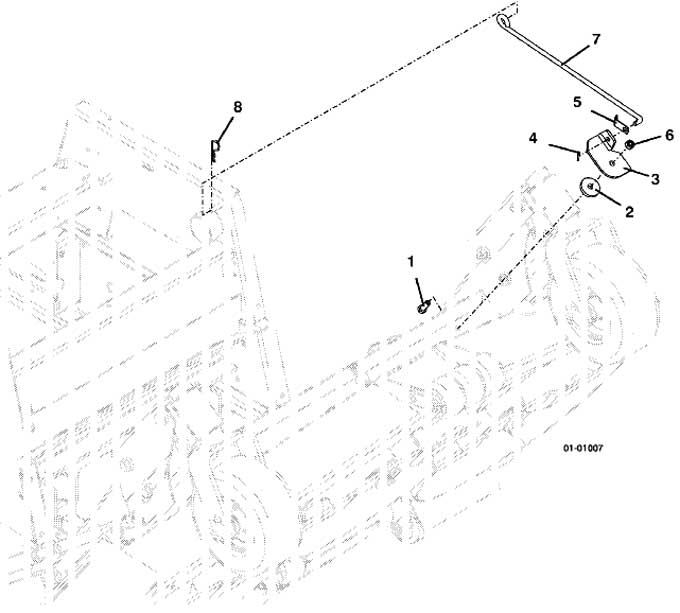

Stabilizer Rod Assembly • Grasshopper 9852 Deck

2003

Stabilizer Rod Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hex Bolt

243330

2

Washer

883801

3

98 series Rod Mount Plate

725017

4

Cotter Pin

260648

5

Lever Rod Clip

720121

6

Lock Nut

253890

7

SL Decks Stabilizer Rod

321275

8

Hair Pin

260523
