Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

Right Angle Gearbox Assembly • Grasshopper 9861 Deck

2000

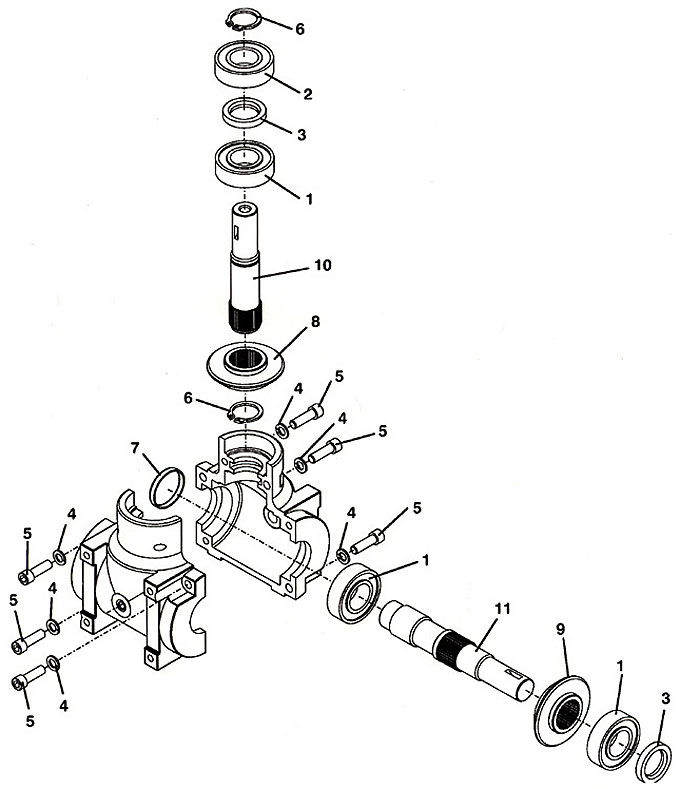

Right Angle Gearbox Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Ball Bearing without Seal

120087

2

Ball Bearing with Seal

120088

3

Seal

125390

4

Lock Washer

257402

5

Socket Head Screw

259594

6

External Retainer

263542

7

Not Available

365511

8

Expansion Plug

365540

9

Half Housing

391730

10

Gear

392525

11

Gear

392526

12

Shaft

393530

13

Shaft

393535

14

Counter-Clockwise HD Right Angle Gearbox

390022

return to 9861 index return to top of page
