Genuine OEM Grasshopper® Mower Parts Diagrams

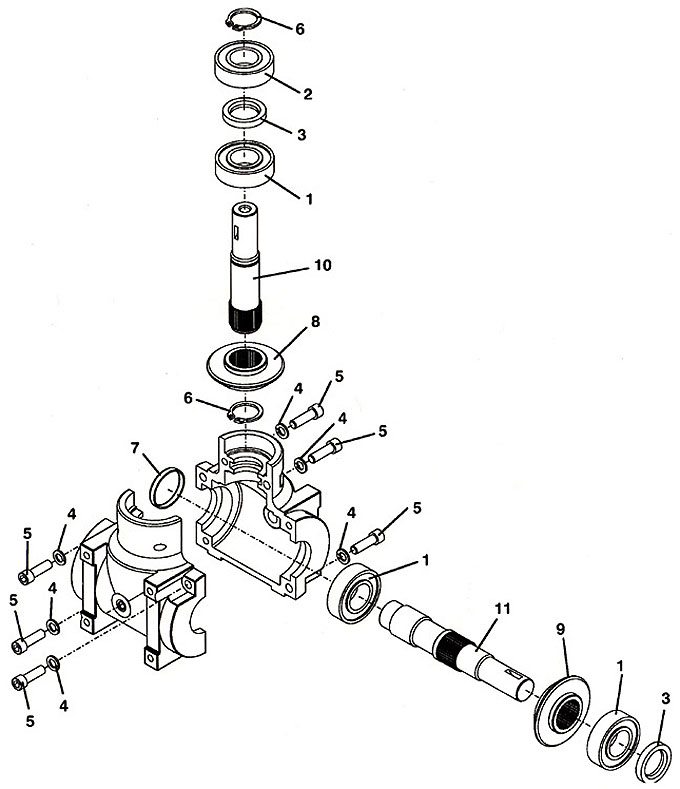

Right Angle Gearbox Assembly • Grasshopper 9861 Deck
2001
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Ball Bearing without Seal |
120087 |
2 |
Ball Bearing with Seal |
120088 |
3 |
Seal |
125390 |
4 |
Lock Washer |
257402 |
5 |
Socket Head Screw |
259594 |
6 |
External Retainer |
263542 |
7 |
Not Available |
365511 |
8 |
Expansion Plug |
365540 |
9 |
Half Housing |
391730 |
10 |
Gear |
392525 |
11 |
Gear |
392526 |
12 |
Shaft |
393530 |
13 |
Shaft |
393535 |
14 |
Counter-Clockwise HD Right Angle Gearbox |
390022 |
