Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

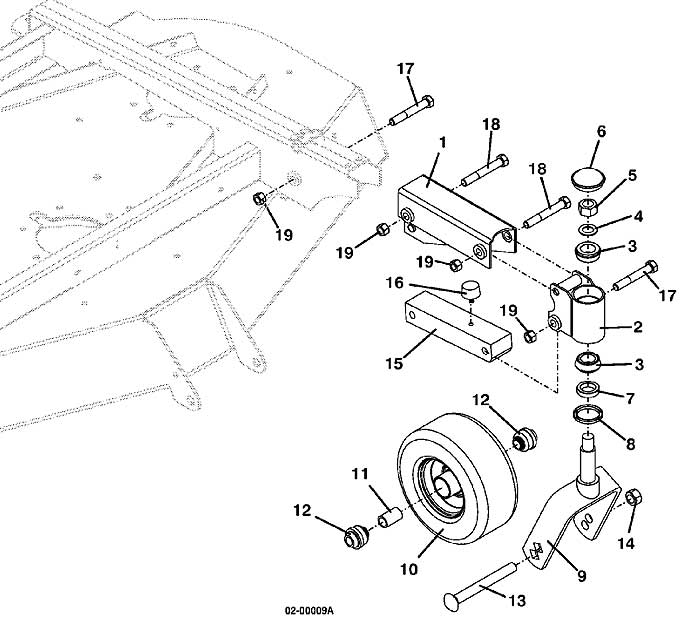

Wheel Lift Assembly • Grasshopper 9861 Deck

2003

Wheel Lift Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Upper Right Lift Channel

643500

-

Upper Left Lift Channel

643501

2

Deck HD Fork Housing

824982

-

Bearing Cup

123522

3

Taper Bearing

122522

4

14 GA Bushing Washer

257091

5

Lock Nut

253992

6

Dust Cap

481432

7

Spacer

282615

8

Seal

125855

9

Tapered Bearing Fork

644221

10

9 x 3.5 x 4 Semi-Pneumatic Wheel Assembly with Bearing

603973

11

Center Axle Spacer

902428

12

DP Wheel Ball Bearing

120048

13

Carriage Bolt

247715

14

Lock Nut

253970

15

Deck Stabilizer witrh Bumper

822312

16

Rubber Bumper

424052

17

Hex Bolt

243609

18

Hex Bolt

243614

19

Lock Nut

253930
