Genuine OEM Grasshopper® Mower Parts Diagrams

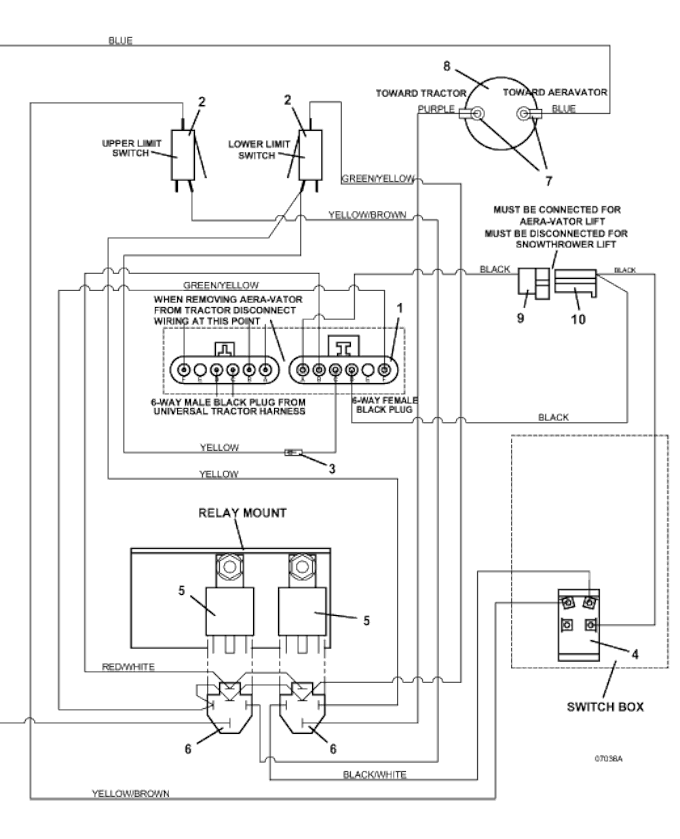

Strap Lift • Electric Lift Assembly Wiring Diagram
2008 and Newer
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
6 Way Female Connector |
184969 |
2 |
Switch Lever |
183855 |
3 |
Diode 800V |
202105 |
4 |
2 Post Rocker Switch |
184177 |
5 |
Heavy Duty Relay Assembly |
604712 |
6 |
5 Way Female Connector |
184926 |
7 |
Boot |
425217 |
8 |
Lift Drive Assembly |
604515 |
9 |
2 Way Male Connector |
184919 |
10 |
2 Way Female Connector |
184921 |
11 |
Aeravator Universal WP Wiring Assembly |
605859 |
