Genuine OEM Grasshopper® Mower Parts Diagrams

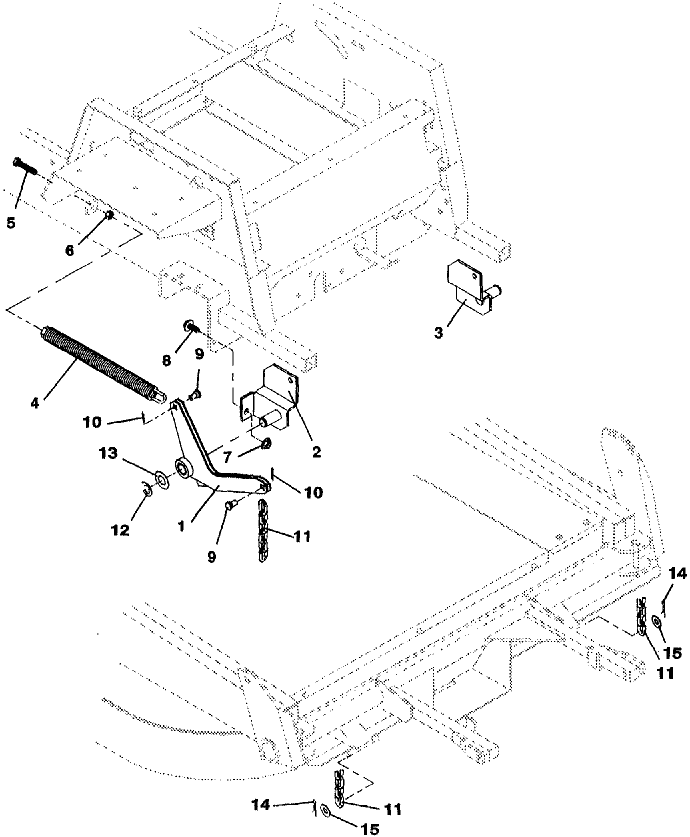

614 • Traction Kit
1991
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Rocker & Bearing Assembly |
603715 |
- |
Oilite Bearing |
121766 |
2 |
right 600 Traction Kit Bracket |
643146 |
3 |
left 600 Traction Kit Bracket |
643147 |
4 |
Traction Kit Spring Assembly |
605760 |
5 |
Hex Bolt |
243347 |
6 |
Nut |
254450 |
7 |
Whiz Nut |
253043 |
8 |
Whiz Flange Bolt |
253203 |
9 |
Clevis Pin |
261336 |
10 |
Cotter Pin |
260648 |
11 |
Lift Chain with 6 Links |
820322 |
12 |
External Retainer |
263529 |
13 |
18 Gauge Bushing Washer |
257092 |
14 |
Hair Pin |
260523 |
15 |
Washer |
257040 |
16 |
600 Conversion Traction Kit |
503885 |
