614 • Final Drive Assembly

1997

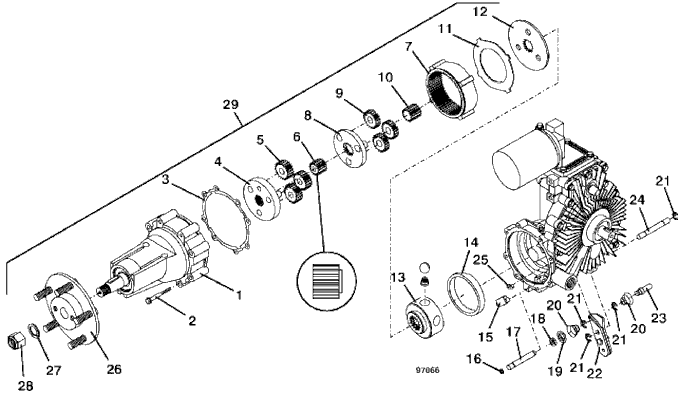

Final Drive Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

NOT AVAILABLE

391706

-

Axle Housing Assembly

391704

2

Machine Screw

250459

3

Axle Housing Gasket

420344

4

NOT AVAILABLE

392806

-

Secondary Planetary Assembly - NOT AVAILABLE

392840

5

Secondary Planetary Gear

392834

-

Secondary Planetary PM Gear - NOT AVAILABLE

392837

6

Secondary Sun-Finished Steel Gear

392831

-

Secondary Sun-Finished PM Gear

392832

7

Double Ring Gear

392838

8

NOT AVAILABLE

392805

9

Primary Planetary Gear

392823

-

Primary Planetary Gear

392824

10

Primary Sun-Finished Steel Gear w/out Pin

392821

11

Back-Up Plate - NOT AVAILABLE

103731

12

Composite Reaction Plate

103723

13

Rotor Motor

103775

14

Cup Bearing

123758

15

NOT AVAILABLE

103729

16

Quad Seal

125160

17

NOT AVAILABLE

000000

18

NOT AVAILABLE

000000

19

Base Spring

103726

20

Conical Spring

103692

21

External Retainer

263489

22

NOT AVAILABLE

103725

23

NOT AVAILABLE

000000

24

Brake Pivot Rod

103724

25

Magnet

102501

-

Tie

423147

26

Tapered 5 Bolt Hub Assembly

603429

-

Stud Wheel Bolt

248570

-

4 Bolt Hub Assembly

603423

27

14 Gauge Bushing Washer

257091

28

Nylon Insert Nut

253501

29

Final Drive Assembly - 700 Series - NOT AVAILABLE

603339

-

Final Drive Assembly - 600 Series - NOT AVAILABLE

603335
