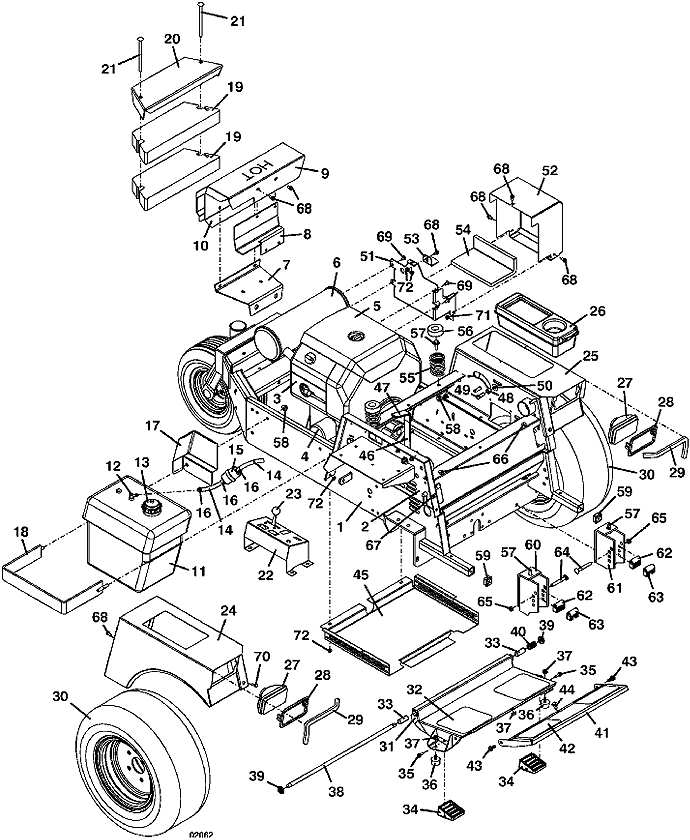

1

618 Lower Frame

643841

2

600 97 Upper Frame

643838

3

18hp OHV Kohler Engine

100142

4

Kohler Oil Filter

100802

5

Kohler Air Filter

100928

-

Kohler 20hp Precleaner Air Filter

100929

6

Kohler Muffler

101217

-

Kohler Exhaust Gasket

101041

7

Lower Muffler Bracket

729270

8

Shield Mount Bracket

643117

9

618 Muffler Shield

722391

10

Inner Panel Shield

722309

11

Fuel Tank Assembly with Draw Tube

603813

12

Fuel Draw Tube

101819

13

Fuel Cap

100210

14

Fuel Hose

821710

15

Kohler Fuel Filter

101001

16

Spring Hose Clamp

280260

17

right Fuel Tank Heat Shield

721123

18

Fuel Tank Mounting Bracket

643144

19

34 lb. Counterweight

323933

20

34 lb. Weight Cover Plate

729514

21

Carriage Bolt

247325

22

200 Console Panel with Decal

693115

23

Mechanical Choke

142216

24

03 614 right Fender with Decal

693200

-

618 right Trim Decal

163228

25

03 614 left Fender with Decal

693201

-

618 left Trim Decal

163229

26

Tool Box

422040

27

Flood Worklamp

182253

28

Snap Mount Worklamp Bezel

182251

29

Trim

822632

30

20 X 10 X 8 Tan Wheel & Turf Tire

483921

-

20 X 10 X 8 Turf Tire

482472

-

21 X 11 X 8 Bar Tread Tire

482478

-

8 X 6 5-Bolt Wheel

483410

-

8 X 9.125 5-Bolt Wheel

483415

-

21 X 11 X 8 right Wheel & Bar Tread Tire

483930

-

21 X 11 X 8 left Wheel & Bar Tread Tire

483931

31

600 Adjustable Foot Platform Assembly

604347

32

Foot Rest Tread

420905

33

Nylon Bearing

422615

34

Footrest Isolator Block

424100

35

Hex Bolt

243026

36

Rubber Bumper

424052

37

Whiz Nut

253035

38

600 Footrest Pivot Rod

780656

39

Nylon Insert Nut

253470

40

Compression Spring

283312

41

600 Foot Platform Extension

603300

42

Footrest Extension Tread

420904

43

Hex Flange Whiz Bolt

253192

44

Carriage Bolt

247130

45

600 Series Trash Screen

721387

46

618 Throttle Assembly

603853

-

Control Cable Assembly

323643

-

Throttle Lever Stop

722009

47

Handle Grip

422150

48

Spacer

902280

49

Hex Bolt

243330

50

Washer

257040

51

G2 AC Battery Box

644099

52

AC Battery Cover

644162

53

Battery Clamp

729001

54

Battery Tray Pad

427273

55

Compression Spring

283516

56

Seat Spring Cap

422127

57

Whiz Flange Bolt

253203

58

Whiz Nut

253043

59

1" ID Square Plastic Plug

422065

60

600 right QD Deck Mount

643097

61

600 left QD Deck Mount

643098

62

Deck Mount Bushing

282575

63

Floating Deck Mount Bushing

282576

64

Special Carriage Bolt

247280

65

Nylon Insert Nut

253460

66

Rubber Bumper

424015

67

Speed Nut

254431

68

Hex Whiz Bolt

253173

69

Truss Whiz Bolt

253176

70

Hex Whiz Bolt

253175

71

Nylon Insert Nut

253440

72

Whiz Nut

253025

73

Decal Set for 618 with Side Console

604292
